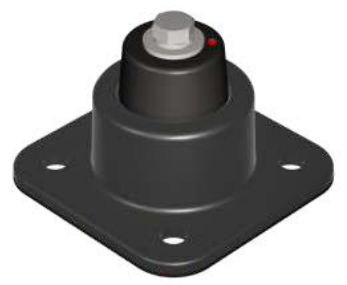

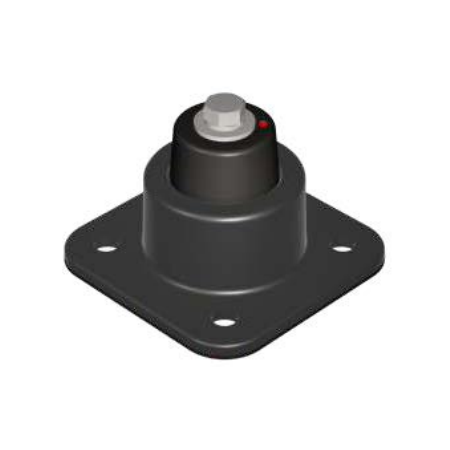

70A Duro Seismic Mount | 4000 N Compression | 1200 N Tension | 50mm Height | by Aspen Pumps
The 70A Duro Seismic Mount is designed for effective vibration isolation, featuring a robust 4000 N compression and 1200 N tension capacity. Ideal for industrial machinery and HVAC systems, this mount ensures optimal load support while extending equipment lifespan. Built from durable 70A durometer material, it’s perfect for seismic applications requiring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 70A Duro Seismic Mount | 4000 N Compression | 1200 N Tension | 50mm Height | by Aspen Pumps
Brand: Aspen Pumps
SKU: ASRM5070
Alternatively Known As: Seismic Mount, Vibration Isolator, 70A Duro Seismic Mount, 50mm High Vibration Mount
Technical Specifications
- Rated Capacity Compression: 4000 N
- Rated Capacity Tension: 1200 N
- Rated Capacity Shear: 600 N
- Material Hardness: 70A Duro
- Height: 50mm
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Rated Capacity Compression: 4000 N
- Rated Capacity Tension: 1200 N
- Rated Capacity Shear: 600 N
- Durable 70A durometer hardness material
- 50mm height for effective seismic mounting
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper seismic mounting and load distribution.
Applications
- Seismic vibration isolation for mechanical and electrical equipment
- Industrial machinery mounting
- HVAC systems requiring vibration damping
- Equipment requiring compression, tension, and shear load support
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces equipment wear and tear, extending equipment lifespan and reducing waste
- Helps maintain energy efficiency by minimizing vibration-related energy losses
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Pumps 70A Duro 50mm High Seismic Mount is available now for immediate purchase. Ideal for industrial and commercial seismic vibration isolation applications.
