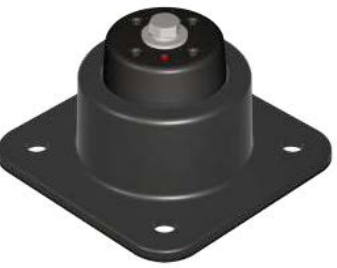

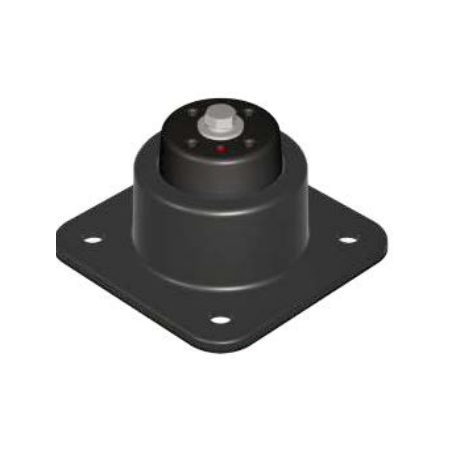

70A Duro Seismic Mount | 6000 N Compression | 2000 N Tension | 1100 N Shear | by Aspen Pumps
The 70A Duro Seismic Mount is engineered for effective seismic isolation, featuring a robust 6000 N compression capacity and 2000 N tension capacity. Ideal for industrial and commercial applications, this mount protects sensitive equipment from shock and vibration, ensuring longevity and operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 70A Duro Seismic Mount | 6000 N Compression | 2000 N Tension | 1100 N Shear | by Aspen Pumps
Brand: Aspen Pumps
SKU: ASRM7570
Alternatively Known As: Seismic Mount, Vibration Isolator, Rubber Mount, Shock Absorber Mount
Technical Specifications
- Rated Capacity Compression: 6000 N
- Rated Capacity Tension: 2000 N
- Rated Capacity Shear: 1100 N
- Material: 70A Duro rubber compound
- Height: 75mm
- Dimensions (H x L x W): 75mm x 75mm x 75mm
- Weight: 0.5 kg
Key Features
- Rated Capacity Compression: 6000 N
- Rated Capacity Tension: 2000 N
- Rated Capacity Shear: 1100 N
- Durable 70A Duro rubber compound
- 75mm height for effective seismic isolation
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper seismic isolation and compliance with building codes.
Applications
- Seismic mounting for mechanical and electrical equipment
- Industrial and commercial vibration isolation
- Protection of sensitive equipment from shock and vibration
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces equipment damage and extends lifespan, minimizing waste
- Helps maintain operational efficiency, reducing energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps 70A Duro 75mm High Seismic Mount is available for immediate purchase, ideal for seismic protection in industrial and commercial applications.
