Trade Discount 17%

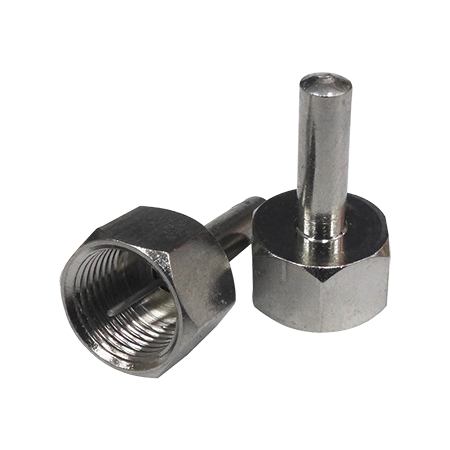

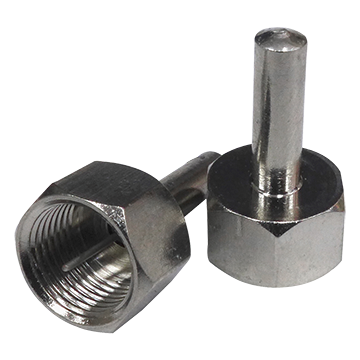

75 Ohm DC Blocking Terminator | Pack of 10 | Type F Connectors | 1W Power by Matchmaster
75 Ohm DC blocking terminator with Type F connectors and 1W power rating—ideal for video and audio signal applications. Built for optimal signal performance, with a convenient pack of 10 for bulk use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 75 Ohm DC Blocking Terminator (10 Pack)
Brand: Matchmaster
SKU: 18MM-DV25
Alternatively Known As: 75 Ohm F-Type Terminator, DC Blocking Terminator, RF Terminator, Multiswitch Terminator
Technical Specifications
- Impedance: 75 Ohm
- Connector Type: ‘F’ type male
- Frequency Range: Up to 3000MHz
- Body Material: Nickel-plated brass
- Function: DC voltage blocking and signal termination
- Dimensions (H x L x W): 18mm x 18mm x 18mm
- Weight: 0.05 kg
Key Features
- 75 Ohm ‘F’ type male terminator with DC separation
- Suitable for use in multiswitch and tap systems with DC line voltage
- Nickel-plated brass body for long life
- Prevents signal return which causes additional noise in RF networks
- Suitable for use up to 3000MHz
- Foxtel approved (F30083)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper termination and network performance.
Applications
- Used in 5 Wire Multiswitch systems to terminate tap and splitter throughputs
- Active Taps for their DC in port if being terminated
- End of line connections in RF networks to prevent signal return and interference
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated brass construction extends product life, reducing waste
- Helps maintain signal integrity, reducing need for additional equipment and energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 75 Ohm DC Blocking Terminator (10 Pack) is available now for immediate purchase. Ideal for professional and residential RF network installations.
