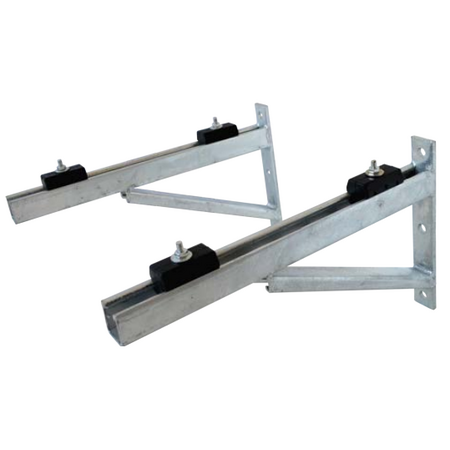

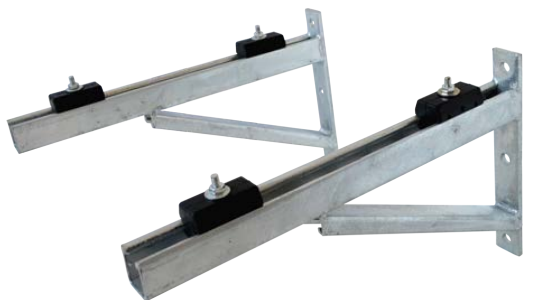

750mm Cantilever Bracket Set | Hot Dip Galvanised Steel | 150kg Load Capacity | Includes Vibration Mounts | by Aspen Pumps
The 750mm Cantilever Bracket Set is designed for securely mounting air conditioning units on walls, featuring durable hot dip galvanised steel construction and a maximum load capacity of 150kg. Ideal for both residential and commercial HVAC installations, this set includes 2 brackets and 4 vibration mounts to ensure stability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 750mm Cantilever Bracket Set | Hot Dip Galvanised Steel | 150kg Load Capacity | Includes Vibration Mounts | by Aspen Pumps
Brand: Aspen Pumps
SKU: CB750
Alternatively Known As: Air Conditioning Mount Bracket, HVAC Cantilever Bracket, Wall Mount Bracket for AC Units
Technical Specifications
- Material: Hot dip galvanised steel
- Height: 280mm
- Length: 750mm
- Max Load Capacity: 150kg
- Includes 4 vibration mounts
- Compatible with 40mm channel
- Dimensions (H x L x W): 280mm x 100mm x 750mm
- Weight: 3.5 kg
Key Features
- Made from hot dip galvanised steel for durability and corrosion resistance
- Comes as a set of 2 brackets with complete mounting kit
- Includes wall fastenings and 4 purpose-designed vibration mounts
- Designed to suit 40mm channel
- Maximum load capacity of 150kg
Professional Installation Requirements
- Professional installation is recommended to ensure secure mounting and compliance with structural safety standards.
Applications
- Mounting air conditioning units securely on walls
- Suitable for residential and commercial HVAC installations
- Supports equipment requiring vibration isolation
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot dip galvanised steel construction extends product life, reducing replacement frequency and waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen 750mm Cantilever Bracket Set is available now for immediate purchase. Ideal for securely mounting air conditioning units in residential and commercial HVAC applications.
