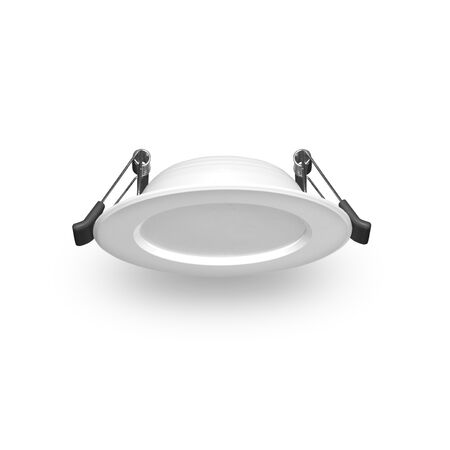

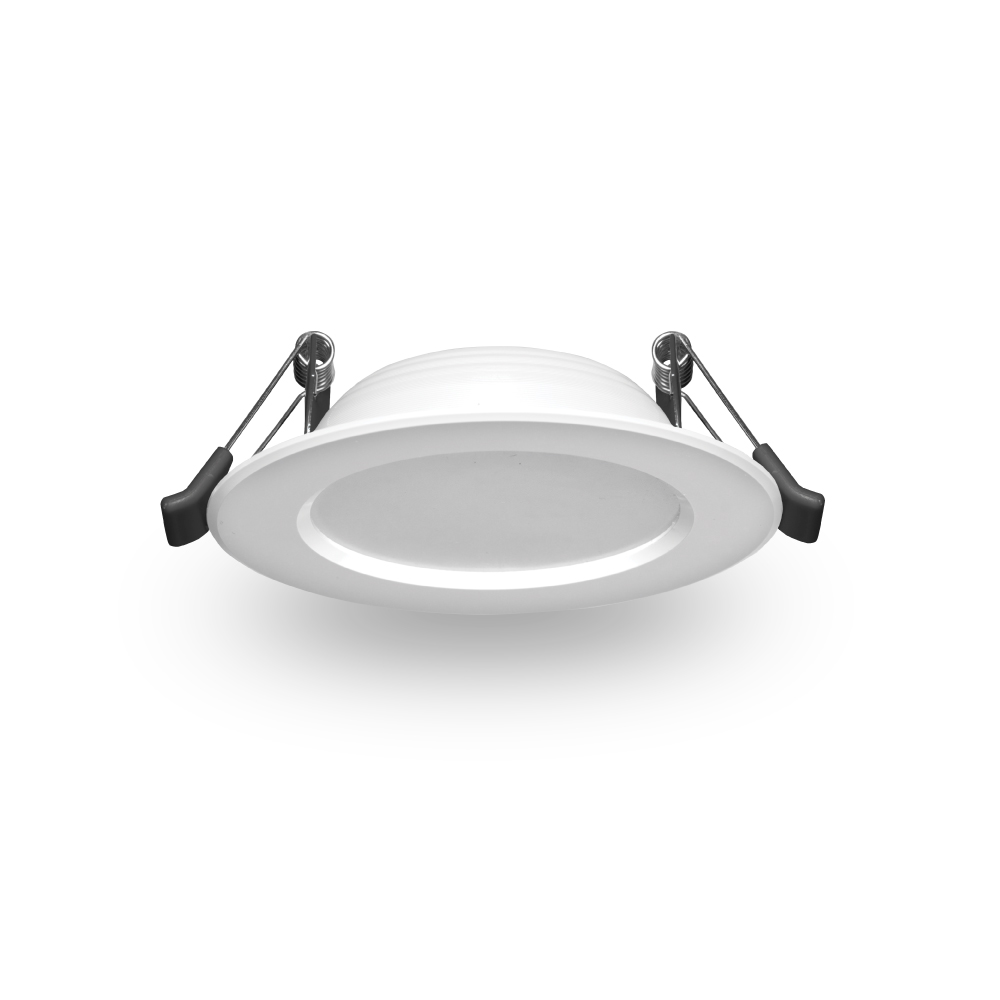

7W LED Downlight with Dimm Driver | 120° Beam Angle | TRI-CCT | IP44 Rated | by atom
The 7W LED Downlight with Dimmable Driver is perfect for both residential and commercial lighting needs. With a 120° beam angle and TRI-CCT functionality, you can easily adjust the color temperature to suit your space. Its IP44 rating ensures moisture resistance, making it ideal for various installations, while the long LED lifespan of over 54,000 hours guarantees lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 7 Watt LED Recessed Downlight, Dimmable LED Ceiling Light, TRI-CCT LED Downlight, Adjustable Colour Temperature LED Light
Technical Specifications
- Power: 7 W
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- LED Voltage: 36 V
- LED Current: 200 mA
- Driver Current: 160 mA
- Colour Rendering Index (CRI): >80
- Colour Temperatures: 3000K, 4000K, 5700K
- Beam Angle: 120 degrees
- IP Rating: IP44 front face only
- IC Rating: IC-4
- Operating Temperature: -20 to 40 °C
- Switch Type: Inline
- Dimmable: Yes (phase cut)
- LED Lifetime: >54,000 hours (TM-21 report)
- Dimensions (H x L x W): 50mm x 90mm x 90mm
- Weight: 0.3 kg
Key Features
- Total system efficiency of 107 lm/W
- IP44 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Fixed adjustability with powder-coated white aluminium body
- Dimmable phase cut driver included
- Three selectable colour temperatures: Warm White (3000K), Cool White (4000K), Daylight (5700K)
- High CRI >80 for accurate colour rendering
- Long LED lifetime over 54,000 hours
- Operating temperature range from -20 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential lighting: living rooms, bedrooms, kitchens
- Commercial lighting: offices, retail spaces, hospitality
- Recessed ceiling installations requiring adjustable white light temperatures
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Particular Requirements for Recessed Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for D.C. or A.C. Supplied Electronic Control Gear for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifespan minimizes waste and replacement frequency
- Dimmable driver allows energy savings through adjustable light output
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The atom 7W LED Downlight with Dimmable Driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications requiring adjustable white light.
