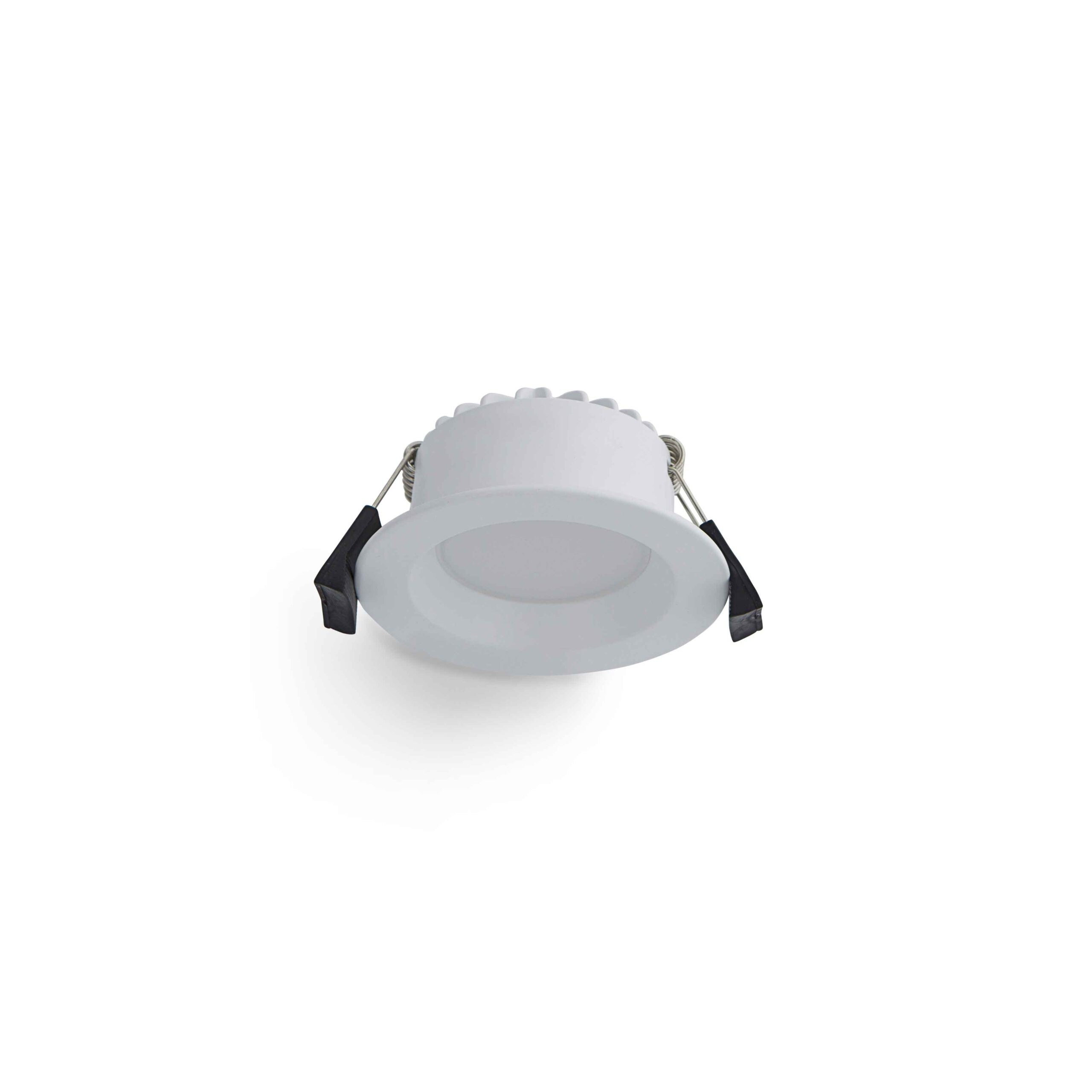

7W LED Downlight with Dimmable Driver | 90° Beam Angle | TRI-CCT Configuration | IP54 Rated | by atom
The 7W LED Downlight with Dimmable Driver is perfect for both residential and commercial lighting needs. Featuring a 90° beam angle and TRI-CCT configuration, it offers warm white, cool white, and daylight options. With an impressive CRI of over 90 and an IP54 rating for moisture resistance, this downlight ensures accurate color representation and durability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 7 Watt LED Recessed Downlight, Dimmable LED Ceiling Light, TRI-CCT LED Downlight, 7W LED Panel Light
Technical Specifications
- Total System Efficiency: 77 lm/W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 7 W
- Colour Temperatures: 3000K (540 lm), 4000K (620 lm), 5700K (590 lm)
- Beam Angle: 90°
- CRI: >90
- Driver Type: Dimmable (Phase cut), driver included
- Working Temperature Range: 0 to 40 °C
- IP Rating: IP54 front face only
- IC Rating: IC-4
- Body Material: Aluminium with powdercoated finish
- Diffuser Material: PMMA
- Installation Type: Recessed
- Wiring Type: Re-wireable flex & plug (2 pin)
- Dimensions (H x L x W): 50mm x 90mm x 90mm
- Weight: 0.3 kg
Key Features
- Dimmable driver with phase cut technology
- Fixed adjustability with 90° beam angle
- High Colour Rendering Index (CRI) >90 for accurate colour representation
- TRI-CCT configuration offering Warm White (3000K), Cool White (4000K), and Daylight (5700K)
- IP54 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Powdercoated white aluminium body with PMMA diffuser
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with Australian electrical standards and safety.
Applications
- Residential lighting: living rooms, kitchens, bedrooms
- Commercial lighting: offices, retail spaces, hospitality
- General indoor recessed lighting applications
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS/NZS 61347.1
- AS/NZS 61347.2.13
Environmental Benefits
- High system efficiency of 77 lm/W reduces energy consumption
- Long lifespan LED technology minimizes waste and replacement frequency
- Dimmable driver allows energy savings by adjusting light output
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 2 years onsite plus 3 years return-to-base (total 5 years) available to registered users under specific terms.
Available Now
The atom 7W LED Downlight with Dimmable Driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
