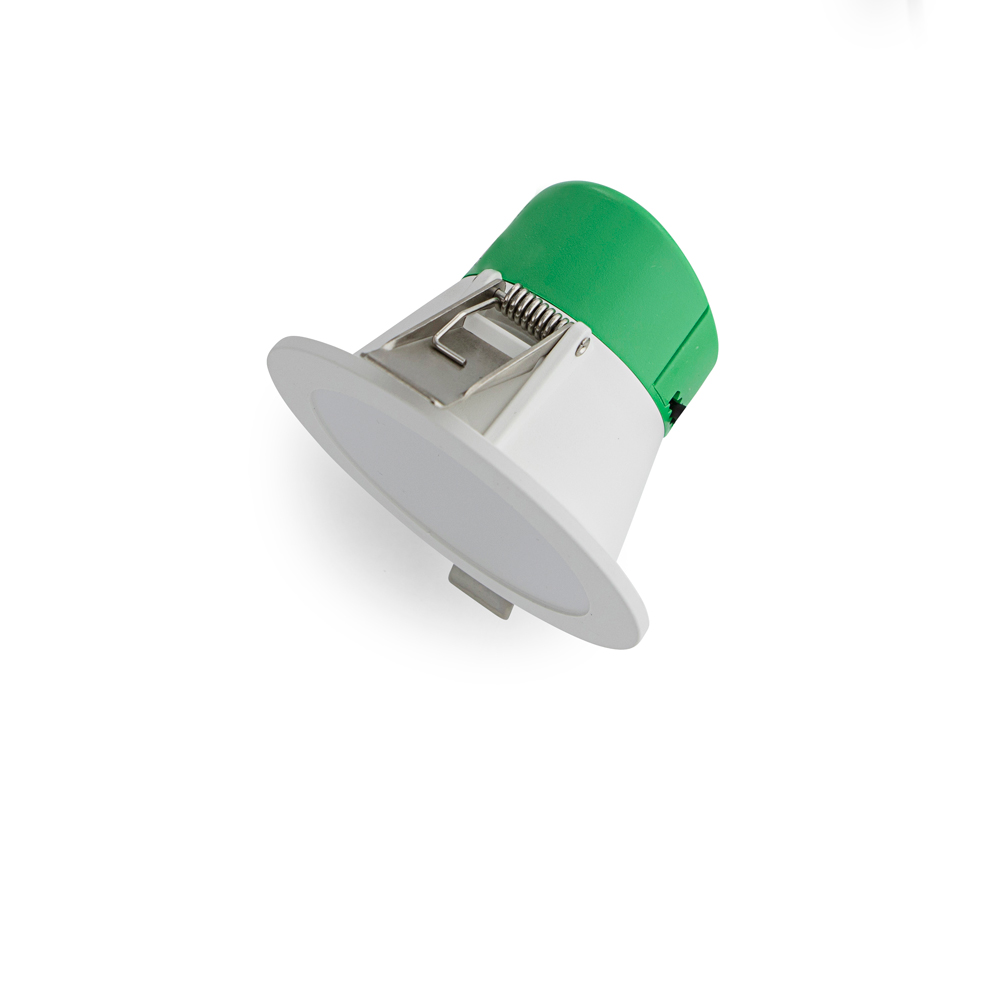

7W LED Downlight with Dimmable Driver | TRI-CCT | IP54 Rated | Flush Lens | by atom
The 7W LED Downlight with Dimmable Integral Driver is perfect for both residential and commercial spaces, offering TRI-CCT options of warm white, cool white, and daylight. With an IP54 rating for moisture resistance and a beam angle of 90°, this downlight ensures efficient and versatile lighting solutions. Ideal for recessed installations in living rooms, kitchens, and offices, it combines style with functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 7 Watt LED Recessed Downlight, Dimmable LED Ceiling Light, TRI-CCT LED Downlight, Flush Mount LED Downlight
Technical Specifications
- Power: 7 W
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Colour Temperatures: 3000K (Warm White), 4000K (Cool White), 5700K (Daylight)
- Lumen Output: 560 lm (3000K), 650 lm (4000K), 600 lm (5700K)
- Beam Angle: 90°
- CRI: >80
- IP Rating: IP54 front face only
- IC Rating: IC-4
- Driver: Integrated dimmable phase cut driver
- Operating Temperature: 0 to 40 °C
- Wiring: Re-wireable flex & plug (2 pin)
- Finish: White powdercoated aluminium
- Dimensions (H x L x W): 50mm x 70mm x 70mm
- Weight: 0.2 kg
Key Features
- Total system efficiency of 93 lm/W
- IP54 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Fixed adjustability with white powder-coated aluminium body
- Dimmable integral phase cut driver included
- TRI-CCT with warm white (3000K), cool white (4000K), and daylight (5700K) options
- Beam angle of 90° for wide light distribution
- Colour Rendering Index (CRI) greater than 80
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and proper dimmer compatibility.
Applications
- Residential: Living rooms, kitchens, bedrooms
- Commercial: Offices, retail spaces, hospitality
- General: Indoor ceiling recessed lighting
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
Environmental Benefits
- High system efficiency reduces energy consumption
- Long lifespan reduces waste and replacement frequency
- Dimmable feature allows for energy savings and customized lighting
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years) for registered users. Standard warranty: 3 years return-to-base for domestic use.
Available Now
The atom 7W LED Downlight with dimmable integral driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
