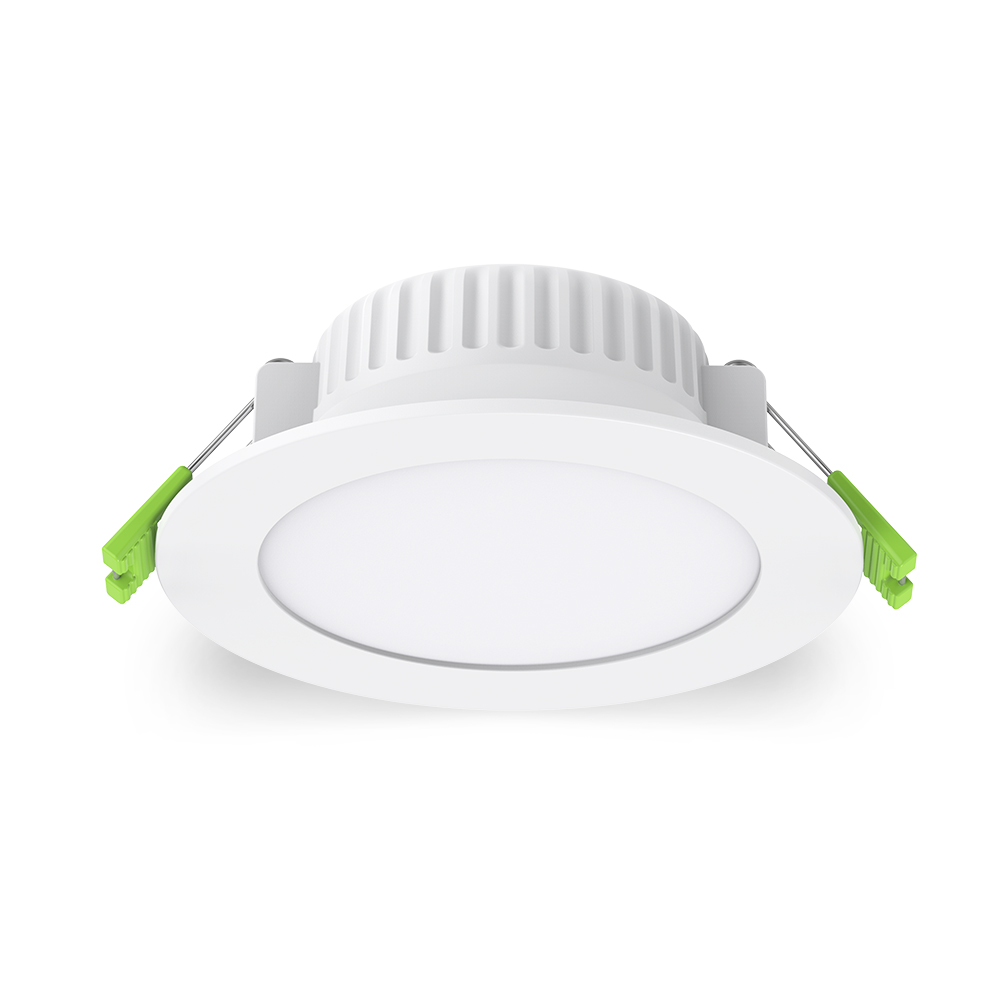

7W Low Profile LED Downlight | Dimmable | Tri-Colour CCT | IP54 Rated | by atom
The 7W Low Profile LED Downlight is perfect for both residential and commercial lighting needs, featuring a dimmable phase cut driver and tri-colour CCT options (Warm White, Cool White, Daylight). With an IP54 rating for moisture resistance and a sleek matt white finish, this downlight is designed for recessed ceiling installations, ensuring both style and functionality in any space.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 7W LED Recessed Downlight, Tri-Colour LED Downlight, Dimmable LED Ceiling Light, Low Profile LED Downlight
Technical Specifications
- Power: 7 W
- Input Voltage: 230Vac (216-253Vac range)
- Frequency: 50 Hz
- Colour Rendering Index (CRI): >80
- Beam Angle: 100°
- LED Type: Diffused
- CCT Options: 3000K, 4000K, 5700K
- IP Rating: IP54 front face only
- IC Rating: IC-4
- Driver: Integrated dimmable phase cut driver
- Wiring: Non-rewireable flex and plug
- Operating Temperature: 0 to 40 °C
- Dimensions (H x L x W): 50mm x 90mm x 90mm
- Weight: 0.2 kg
Key Features
- Dimmable with phase cut driver
- Tri-colour CCT configuration: Warm White (3000K), Cool White (4000K), Daylight (5700K)
- High system efficiency up to 122 lm/W
- IP54 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Matt white finish with plastic body
- Non-rewireable flex and plug wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with Australian electrical standards and safety.
Applications
- Residential lighting: living rooms, kitchens, hallways
- Commercial lighting: offices, retail spaces, hospitality
- Recessed ceiling installations requiring adjustable colour temperature
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598 – Luminaires safety standards
Environmental Benefits
- High luminous efficacy reduces energy consumption
- Long lifespan reduces waste and replacement frequency
- Dimmable feature allows energy savings by adjusting light output
Warranty Information
Standard 3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The atom 7W Low Profile LED Downlight is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
