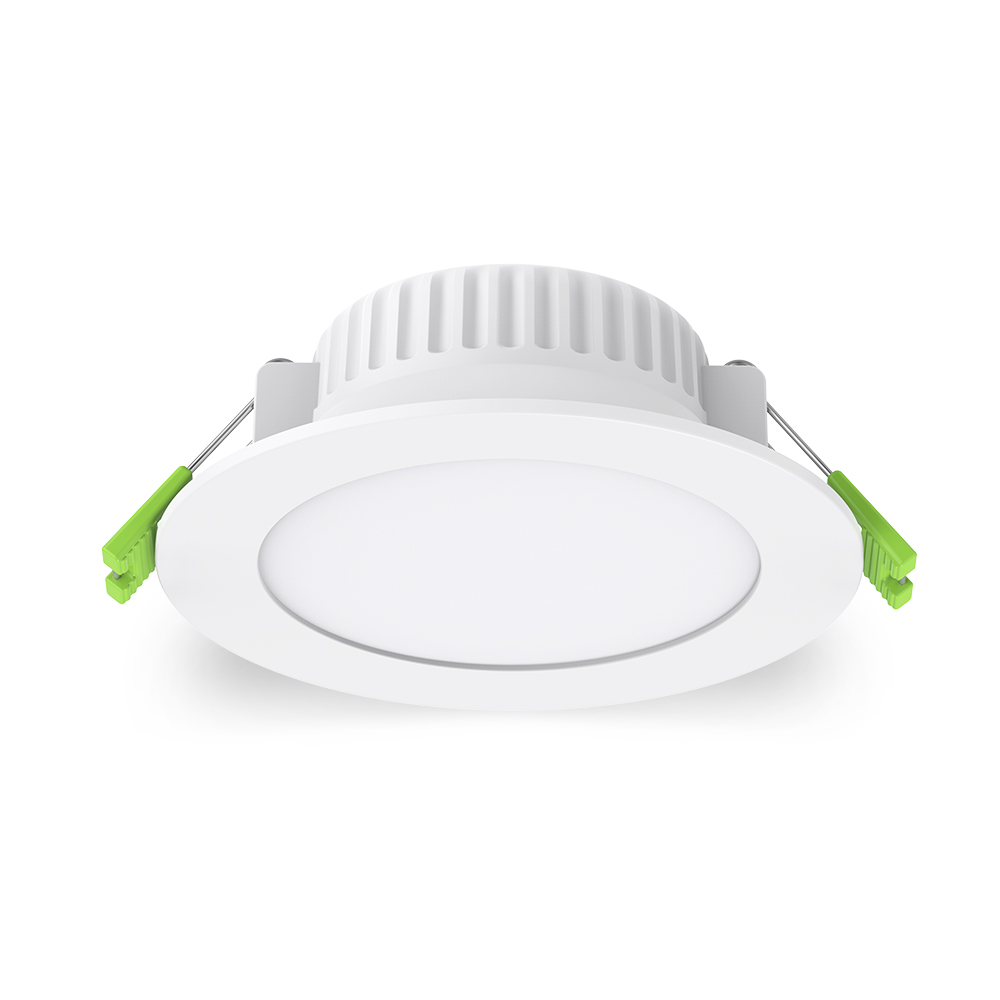

7W Low Profile LED Downlight | Dimmable | Tri-Colour CCT | IP54 Rated | by atom
The 7W Low Profile LED Downlight is perfect for both residential and commercial spaces, offering a dimmable feature and tri-colour CCT options (Warm White, Cool White, Daylight). With an IP54 rating for moisture resistance and a sleek matt white finish, this recessed downlight ensures high efficiency and safety, making it ideal for living rooms, kitchens, and offices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 7W LED Recessed Downlight, Tri-Colour LED Downlight, Dimmable LED Ceiling Light, Low Profile LED Downlight
Technical Specifications
- Power: 7 W
- Input Voltage: 230Vac (216-253Vac range)
- Frequency: 50 Hz
- Colour Rendering Index (CRI): >80
- Beam Angle: 100°
- Colour Temperatures: 3000K, 4000K, 5700K
- Lumens Output: 750 lm (3000K), 830 lm (4000K), 820 lm (5700K)
- IP Rating: IP54 front face only
- IC Rating: IC-4
- Driver: Integrated dimmable phase cut driver
- Operating Temperature Range: 0 to 40 °C
- Wiring: Non-rewireable flex and plug
- Dimensions (H x L x W): 40mm x 90mm x 90mm
- Weight: 0.2 kg
Key Features
- Dimmable with phase cut driver
- Tri-colour CCT configuration: Warm White (3000K), Cool White (4000K), Daylight (5700K)
- High total system efficiency up to 122 lm/W
- IP54 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Matt white finish with plastic body
- Non-rewireable flex and plug wiring type
- Fixed adjustability for recessed installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with Australian electrical standards and safe recessed mounting.
Applications
- Residential lighting: living rooms, kitchens, bedrooms
- Commercial lighting: offices, retail spaces, hospitality
- General indoor recessed lighting applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598 – Luminaires safety standards
- AS/NZS 61347 – Lamp control gear standards
Environmental Benefits
- High luminous efficacy reduces energy consumption
- Long lifespan reduces waste and replacement frequency
- Dimmable feature allows energy savings by adjusting light output
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 5 years total (2 years onsite, 3 years return-to-base) available to registered users under specific terms.
Available Now
The atom 7W Low Profile LED Downlight is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
