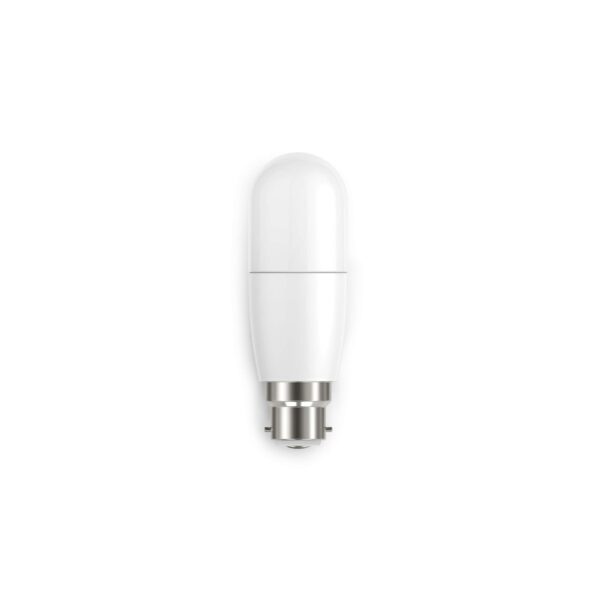

7W T38 LED Stick Lamp B22 | Dimmable Frosted | High CRI >80 | 240° Beam Angle | by atom
The 7W T38 LED Stick Lamp B22 is a versatile lighting solution, featuring a dimmable function and a frosted polycarbonate diffuser for soft, even light. With a high Colour Rendering Index (CRI) of over 80 and a wide beam angle of 240°, this lamp is perfect for both residential and commercial indoor lighting applications, ensuring a warm and inviting atmosphere.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 7W LED Stick Lamp, T38 LED Tube, B22 LED Lamp, Dimmable LED Tube Light, Frosted LED Stick Light
Technical Specifications
- Power Wattage: 7 W (maximum system wattage)
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Power Factor: 0.5
- LED Wattage: 5.7 W
- Colour Temperature Options: 3000K (Warm White), 4000K (Cool White), 5700K (Daylight)
- Lumens Output: 800-840 lm depending on colour temperature
- Beam Angle: 240°
- CRI: >80
- LED Lifetime: 15,000 hours
- Operating Temperature: -20 to 40 °C
- IP Rating: IP20
- Switch Type: Inline
- Driver Type: Integrated dimmable phase cut driver
- Product Design Life: 10 years at 4 hours daily use
- Dimensions (H x L x W): 30mm x 380mm x 30mm
- Weight: 0.1 kg
Key Features
- Dimmable with phase cut driver
- Frosted polycarbonate diffuser for soft light
- High Colour Rendering Index (CRI) >80
- Long LED lifetime of 15,000 hours
- Wide beam angle of 240°
- Integrated driver included
- Suitable for fixed installation
- Operating temperature range from -20 to 40 °C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper connection and dimmer compatibility.
Applications
- Residential lighting
- Commercial lighting
- Indoor general lighting
Standards & Compliance
- Complies with AS/NZS 62560 for self-ballasted LED lamps
- Complies with AS/NZS 3112 for plugs and socket-outlets (Type I Plug)
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product design life of 10 years reduces waste
- Lower heat emission compared to traditional lamps
Warranty Information
VIP Warranty: 2 years return to base (RTB) for registered users; standard domestic use warranty is 1 year RTB or 500 operating hours, whichever occurs first.
Available Now
The Atom 7W T38 LED Stick Lamp B22 Dimmable Frosted is available for immediate purchase, ideal for residential and commercial indoor lighting applications.
