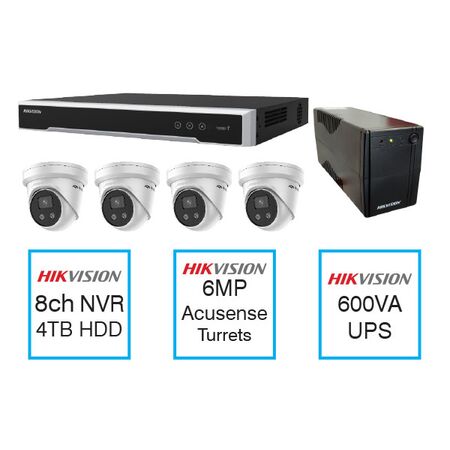

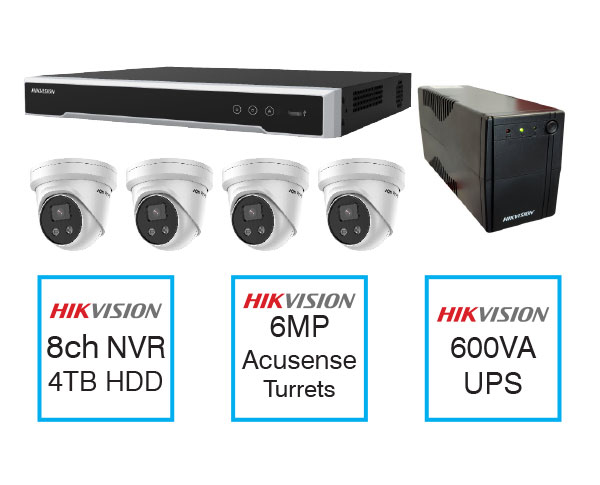

8 Channel CCTV Kit with 6MP AcuSense Turrets and UPS Hikvision
Hikvision 8 channel CCTV kit features 6MP AcuSense turret cameras and a UPS. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision K-3043A CCTV Kit, 8CH AcuSense Security Camera Kit, 6MP Turret Camera Surveillance Kit
Technical Specifications
- Kit Reference: K-3043A
- Camera Quantity: 4 x DS-2CD2366G2H-IU 6MP AcuSense turret cameras
- Camera Resolution: 3200 × 1800 pixels
- Camera Lens: 2.8 mm fixed lens
- Camera Night Vision: Up to 30 m infrared
- Camera Field of View: 114.8° horizontal, 60° vertical, 143.5° diagonal
- Camera Audio: Built-in microphone
- Camera Protection: IP67 water and dust resistance
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- NVR: DS-7608NI-M2/8P 8-channel M-Series NVR
- NVR PoE: 8 integrated PoE ports
- NVR Incoming Bandwidth: Up to 128 Mbps
- Storage: 4TB surveillance hard drive included
- NVR Expansion: 2 SATA interfaces, up to 16TB per disk
- UPS: 600VA with 7Ah sealed lead-acid battery
- UPS Function: Short-term mains backup and brown-out protection
- Packaged Kit Dimensions: Approximately 600 × 450 × 350 mm; estimated from component packaging
- Packaged Kit Weight: Approximately 16 kg; estimated from component weights and packaging
- Dimensions (H x L x W): 350mm x 600mm x 450mm
- Weight: 16 kg
Key Features
- Four 6MP AcuSense turret cameras for high-resolution video surveillance
- AcuSense deep-learning technology classifies human and vehicle targets
- DarkFighter technology and infrared illumination support low-light monitoring
- Built-in camera microphones provide recorded audio support
- IP67-rated cameras are suitable for indoor and outdoor installations
- Eight-channel PoE NVR provides power and data connectivity to the cameras
- Supplied 4TB hard drive supports local video recording
- 600VA UPS provides short-term backup power and protection against brown-outs
- Two unused NVR channels allow future expansion to eight cameras
Professional Installation Requirements
- Installation should be completed by a suitably qualified security installer. The UPS mains connection must comply with Australian electrical installation requirements and should be performed by a licensed electrician where required. Outdoor camera cabling and terminations must be weather protected.
Applications
- Residential security monitoring
- Small commercial premises
- Retail shops and offices
- Warehouses and workshops
- Entry points, driveways and perimeter surveillance
- Remote monitoring through compatible Hikvision software and mobile applications
Standards & Compliance
- Applicable CCTV system standard: AS/NZS 62676 series for video surveillance systems used in security applications
- Camera EMC approval: RCM and AS/NZS CISPR 32:2015 as specified for the DS-2CD2366G2H-IU camera
- Electrical installation should comply with AS/NZS 3000 where applicable
Environmental Benefits
- H.265+ video compression can reduce storage and network bandwidth requirements compared with older compression formats
- IP67-rated metal cameras are designed for extended service life and reduced replacement frequency
- Camera electronics are specified with RoHS and WEEE environmental compliance markings
- The sealed lead-acid UPS battery can be recovered through appropriate battery recycling programmes
- A UPS helps protect recording equipment from power disturbances, potentially extending equipment service life
Warranty Information
36-month Hikvision Australia warranty is listed for the comparable Australian 6MP AcuSense kit configuration. Confirm final warranty terms with the authorised Australian distributor for the K-3043A assembly kit.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors; confirm current stock and kit configuration before ordering.
