Trade Discount 25%

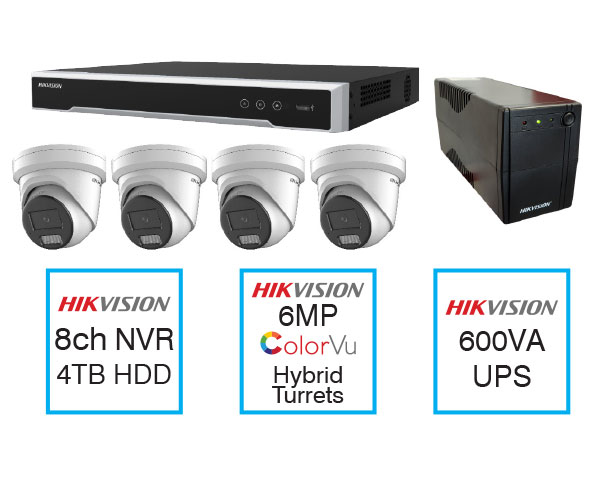

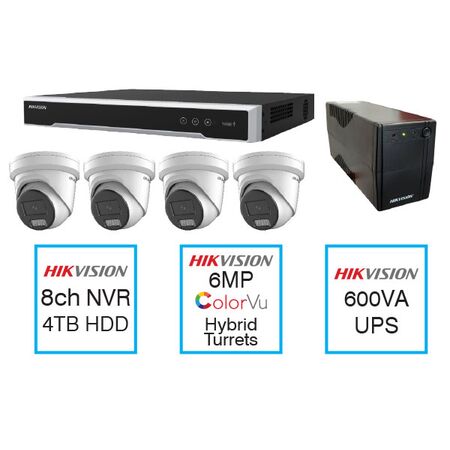

8 Channel CCTV Kit with 6MP Hybrid Turrets and UPS Hikvision
Hikvision 8 channel CCTV kit features 6MP hybrid turret cameras and a UPS. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8CH CCTV Kit, Hikvision ColorVu 3.0 CCTV Kit, Hikvision Hybrid Turret Camera Kit, Hikvision Security Camera System
Technical Specifications
- Kit SKU: K-3043C
- Recorder: Hikvision DS-7608NI-M2/8P 8-channel M-Series NVR
- Cameras: 4 x DS-2CD2367G3-LIS2UY/SL 6MP ColorVu 3.0 hybrid turret cameras
- Camera Lens: 2.8 mm fixed lens
- Camera Resolution: 3200 x 1800 pixels
- Storage: 4TB HDD included
- UPS: Hikvision DS-UPS600-AU, 600VA with 12V 7Ah rechargeable battery
- UPS Backup: Approximately 60 minutes at a 49W load
- Network Connection: 8 integrated PoE ports
- Camera Lighting: Smart Hybrid Light with IR and white-light illumination up to 30 m
- Camera Audio: Built-in dual microphones, speaker and two-way audio
- Camera Protection: IP67 weather resistance and NEMA 4X anti-corrosion protection
- Camera Power: IEEE 802.3at PoE, maximum 17W per camera
- Remote Access: Hik-Connect mobile application
- Expansion Capacity: Four unused NVR channels for additional compatible cameras
- Dimensions (H x L x W): 400mm x 500mm x 400mm
- Weight: 13.5 kg
Key Features
- Complete 8-channel CCTV package for residential and small commercial installations
- Four 6MP ColorVu 3.0 hybrid turret cameras provide colour imaging in low-light conditions
- AcuSense deep-learning classification for people and vehicles
- Active deterrence with strobe light and audible warning
- Integrated microphones and speakers support two-way audio
- 4TB hard drive supplied for local video recording
- Eight-port PoE NVR simplifies camera power and data cabling
- 600VA UPS provides short-term mains backup and brown-out protection
- IP67-rated cameras are suitable for outdoor mounting when correctly installed
- Four spare NVR channels allow future system expansion
Professional Installation Requirements
- Installation should be completed by a suitably qualified security installer. Mains connection of the UPS and any fixed electrical work must be performed by a licensed electrician. Install and configure the CCTV system in accordance with applicable electrical, data-cabling and video-surveillance requirements, including AS/NZS 62676 where applicable.
Applications
- Residential security monitoring
- Small business and retail surveillance
- Entry, driveway and perimeter monitoring
- Warehouse and light-commercial site security
- Outdoor areas requiring colour night vision and active deterrence
- Sites requiring short-term CCTV operation during brief power interruptions
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance system requirements
- AS/NZS 62676.1.2:2020 for video transmission performance requirements
- Camera RCM compliance to AS/NZS CISPR 32:2015 as specified by the manufacturer
Environmental Benefits
- UPS protection can reduce equipment replacement caused by brown-outs and short power interruptions
- PoE connectivity reduces the need for separate camera power cabling and power supplies
- Camera housings are designed for extended outdoor service life, reducing replacement frequency
- Camera electronics are specified with RoHS compliance by the manufacturer
- Replaceable rechargeable UPS battery helps extend the service life of the UPS assembly
Warranty Information
Hikvision products purchased through authorised Australian distribution are generally supplied with manufacturer warranty support; Australian CCTV distributors commonly specify a 3-year back-to-base warranty for Hikvision IP cameras and NVRs. Confirm the applicable warranty terms for the complete K-3043C kit at purchase. The UPS battery may have separate warranty conditions.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors. Confirm current stock and component availability before ordering.
