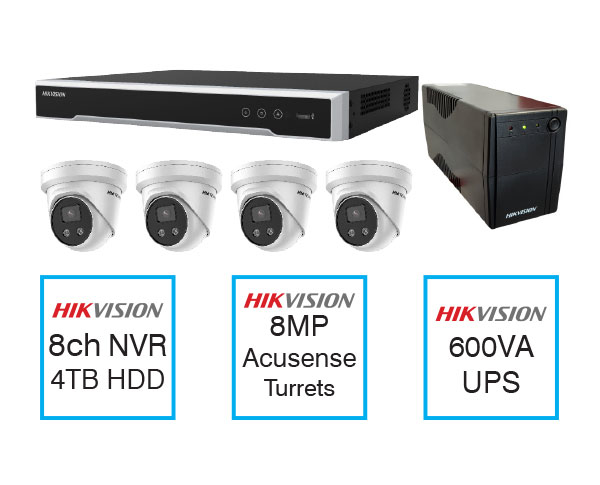

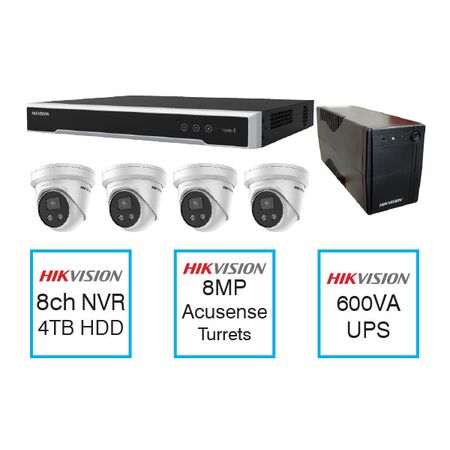

8 Channel CCTV Kit with 8MP AcuSense Turrets and UPS Hikvision
Hikvision 8 channel CCTV kit features 8MP AcuSense turret cameras and a UPS. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision K-3043B CCTV Kit, 8-Channel NVR Security Camera Kit, 8MP AcuSense Turret Camera System
Technical Specifications
- NVR: Hikvision DS-7608NI-M2/8P 8-channel PoE network video recorder
- Cameras: 4 x Hikvision DS-2CD2386G2-IU 8MP AcuSense IR turret cameras
- Camera Resolution: 3840 x 2160 pixels, 4K UHD
- Camera Lens: 2.8 mm fixed lens
- Night Vision: Infrared illumination up to 30 m
- Camera Protection: IP67 weather and dust resistance
- Video Compression: H.265+, H.265 and H.264
- Dynamic Range: 120 dB true WDR
- Audio: Built-in camera microphone
- Storage: 4TB surveillance hard drive included
- UPS: 600VA uninterruptible power supply with 7Ah battery
- NVR PoE: 8 integrated PoE network ports
- NVR Dimensions: 385 x 315 x 52 mm
- NVR Weight: Up to 3 kg without hard drive
- Camera Dimensions: 138.3 mm diameter x 126.3 mm high
- Camera Weight: Approximately 740 g each
- Camera Compliance Marking: RCM listed for the specified camera model
- Dimensions (H x L x W): 300mm x 500mm x 400mm
- Weight: 15 kg
Key Features
- Eight-channel NVR supports expansion beyond the four supplied cameras
- AcuSense analytics classify human and vehicle targets to help reduce nuisance alerts
- Four 8MP 4K turret cameras provide detailed image capture
- Powered-by-DarkFighter technology supports low-light surveillance
- Integrated microphones provide camera-side audio capture
- PoE connectivity simplifies camera power and network cabling
- 4TB hard drive supplied for local recording
- 600VA UPS provides short-term backup power and protection from brown-outs
- Camera specifications and kit contents based on the identified K-3043B assembly listing and Hikvision component datasheets. ([tradezone.com.au](https://www.tradezone.com.au/product/hikvision-8-channel-cctv-kit-8mp-acusense-turrets-ups-98977.html?utm_source=openai))
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV installer. The UPS requires connection to mains power, and camera positioning, network cabling, equipment mounting and commissioning should follow the manufacturer's instructions, applicable electrical requirements and AS/NZS 62676 guidance.
Applications
- Residential security surveillance
- Small commercial premises
- Retail shops and offices
- Warehouses and workshops
- Entry, driveway and perimeter monitoring
- Remote viewing through a compatible Hikvision network and mobile application
Standards & Compliance
- AS/NZS 62676.1.1:2020 is relevant to minimum requirements for CCTV and video surveillance systems
- AS/NZS 62676.4:2020 provides application guidance for selection, planning, installation, commissioning, maintenance and testing of video surveillance systems
- AS/NZS 3000:2018 is relevant to electrical installation work associated with the mains-powered UPS
- The DS-2CD2386G2-IU camera datasheet specifies RCM approval for the camera model. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000008199/Data_Sheet/DS-2CD2386G2-IU-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
Environmental Benefits
- H.265+ video compression can reduce recording storage requirements and associated energy use compared with less efficient codecs
- UPS protection can reduce equipment damage and premature replacement caused by brown-outs and short power interruptions
- The cameras use long-life metal housings and IP67 protection, supporting extended service life in suitable outdoor installations
- Electronic components should be recycled through an approved e-waste or battery-recycling service at end of life
- The Hikvision camera datasheet identifies RoHS and WEEE environmental requirements for the specified camera model. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000008199/Data_Sheet/DS-2CD2386G2-IU-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
Warranty Information
The identified K-3043B assembly listing specifies a 2-year warranty for domestic and commercial use. Hikvision Australia warranty periods can vary by product series and authorised distribution channel; confirm coverage with the supplying distributor. ([tradezone.com.au](https://www.tradezone.com.au/product/hikvision-8-channel-cctv-kit-8mp-acusense-turrets-ups-98977.html?utm_source=openai))
Available Now
Available through Hikvision Australia and authorised Australian security and electrical distributors; confirm current stock and component availability before ordering. ([pro-av.hikvision.com](https://pro-av.hikvision.com/au-en/newsroom/latest-news/2022/hikvision-ebay-online-market-statement/?utm_source=openai))
