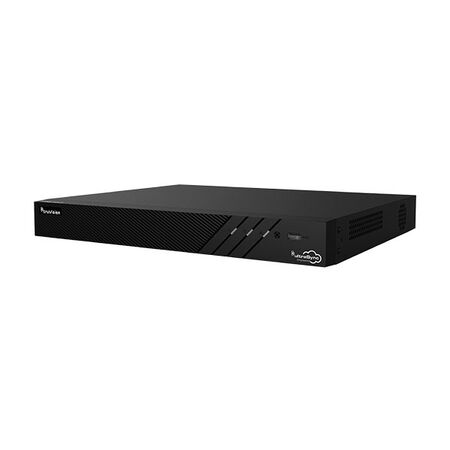

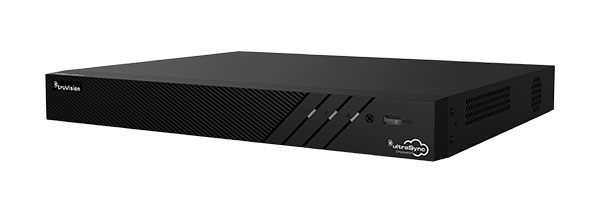

8 Channel NVR 4TB HDD 4K Resolution PoE Ports TruVision

BRAND: Ness
SKU: 121-102
$1,191.10 List price: $1,588.10
+ −
30 Days Return Electricians Unlock Trade Access
TruVision 8 channel network video recorder features a 4TB HDD, 4K resolution and PoE ports. Ideal for CCTV installs.

Alternatively Known As: TruVision NVR 22S, 8-Channel H.265 NVR, 8-Port PoE Network Video Recorder

Technical Specifications
  • Model: TVN-2208S-4T
  • Recorder Type: H.265 network video recorder
  • IP Camera Channels: 8
  • Storage: 4TB HDD
  • PoE Ports: 8 integrated ports
  • PoE Standard: IEEE 802.3af/at
  • Total PoE Budget: 120W
  • Maximum PoE Output: 30W per port
  • Maximum Recording Resolution: 8MP / 4K
  • HDMI Output: Up to 3840 x 2160 at 60Hz
  • Incoming Bandwidth: 80Mbps
  • Network Interface: 1 x RJ-45 Gigabit Ethernet
  • Storage Interfaces: 4 x SATA and 1 x eSATA
  • External Interfaces: 2 x USB 2.0 front, 1 x USB 3.0 rear
  • Alarm Interfaces: 16 alarm inputs and 4 alarm outputs
  • Power Supply: 100–240VAC, 50–60Hz
  • Operating Temperature: -10°C to +55°C
  • Relative Humidity: 10% to 90%
  • Chassis: 1.5U, 19-inch rack-mountable
  • Dimensions (H x L x W): 74mm x 371mm x 442mm
  • Weight: 8 kg
Key Features
  • Supports up to eight IP CCTV cameras
  • Integrated eight-port PoE switch for camera power and data
  • 4TB installed surveillance storage
  • H.265 compression for efficient video storage and bandwidth use
  • Supports 4K-resolution camera recording and local HDMI viewing
  • Compatible with ONVIF and other supported network camera protocols
  • Remote viewing through TruVision Navigator, TVRMobile and web browser
  • Includes USB archiving, eSATA expansion and rack-mount hardware
Professional Installation Requirements
  • Installation and configuration should be performed by a suitably qualified security or electrical technician. Mains connection, network configuration, camera commissioning and rack installation must follow applicable Australian electrical and security installation requirements.
Applications
  • Commercial CCTV installations
  • Retail and small-business video surveillance
  • Warehouses, workshops and industrial premises
  • Residential security camera systems
  • IP camera systems requiring integrated PoE connectivity
Standards & Compliance
  • Relevant system standard: AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications; product-specific conformity was not verified.
Environmental Benefits
  • H.265 compression can reduce recording bandwidth and storage requirements compared with older compression methods, potentially reducing storage hardware demand and energy use.
  • Integrated PoE reduces the need for separate camera power supplies and associated cabling.
  • Rack-mountable construction and expandable storage support longer system service life and reduced replacement waste.
Warranty Information

3-year manufacturer warranty for TruVision DVRs and NVRs, subject to the applicable manufacturer and distributor warranty terms.

Available Now

Available through TruVision and authorised Australian security-system distributors, subject to current product status and distributor stock.
