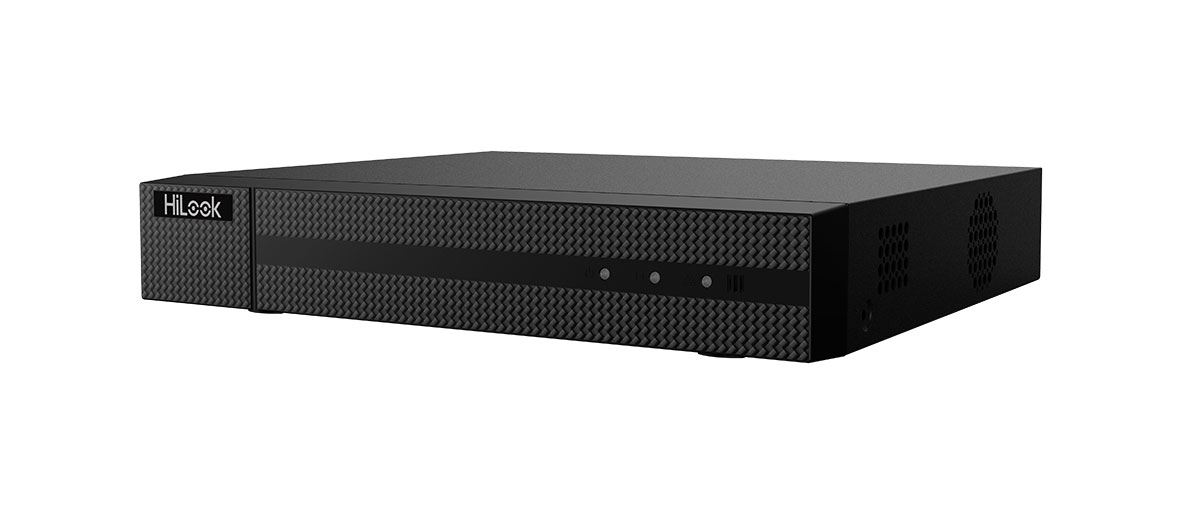

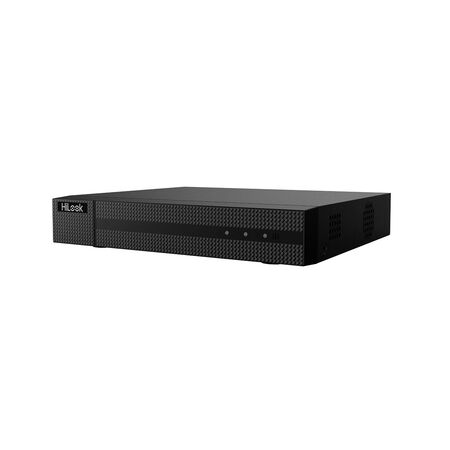

8 Channel NVR 8 PoE No HDD HiLook Hikvision

BRAND: Ness
SKU: 114-801
$321.40 List price: $428.50
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision HiLook NVR features 8 channels, 8 PoE ports and no HDD included. Ideal for CCTV installs.

Alternatively Known As: HiLook 8CH PoE NVR, HiLook 8-Channel CCTV Recorder, Hikvision HiLook NVR-108MH-C/8P

Technical Specifications
  • Model: NVR-108MH-C/8P
  • IP Camera Inputs: 8 channels, up to 8 MP resolution
  • Incoming Bandwidth: 80 Mbps
  • Outgoing Bandwidth: 80 Mbps
  • Video Compression: H.265+, H.265, H.264+, H.264
  • HDMI Output: Up to 4K at 30 Hz
  • VGA Output: Up to 1920 × 1080 at 60 Hz
  • PoE Interfaces: 8 × RJ-45 10/100 Mbps
  • PoE Standard: IEEE 802.3af/at
  • Maximum PoE Budget: 75 W
  • Storage Interface: 1 × SATA, up to 8 TB
  • Hard Drive: Not included
  • Network Interface: 1 × RJ-45 10/100/1000 Mbps
  • Power Supply: 48 VDC, 1.88 A
  • Operating Temperature: -10 °C to 55 °C
  • Operating Humidity: 10% to 90% RH
  • Dimensions (H x L x W): 48mm x 265mm x 225mm
  • Weight: 1 kg
Key Features
  • Eight-channel network video recording for IP CCTV systems
  • Eight integrated PoE ports for direct camera connection and power
  • Supports up to 8 MP IP camera inputs
  • 4K HDMI video output with simultaneous VGA output
  • H.265+ compression can reduce recording storage requirements
  • One SATA bay allows a compatible surveillance hard drive to be added separately
  • Supports remote management through HiLookVision
  • Supplied without a hard drive
Professional Installation Requirements
  • The recorder operates from a low-voltage DC power supply. Installation of associated fixed wiring, mains power outlets and structured cabling should be completed by appropriately qualified or licensed personnel in accordance with local requirements.
Applications
  • Residential CCTV systems
  • Small commercial security installations
  • Retail and office surveillance systems
  • Workshops, warehouses and light-industrial premises
  • IP camera systems requiring integrated PoE without a separate PoE switch
Standards & Compliance
  • AS/NZS 62676.1.1:2020 is applicable to video surveillance systems used for security applications; product-specific certification is not stated in the supplied product information.
  • AS/NZS 3000:2018 applies to associated Australian electrical installation work, including mains connections and fixed wiring.
Environmental Benefits
  • H.265+ video compression can reduce storage requirements compared with older compression formats, potentially reducing storage hardware capacity and energy use.
  • The recorder is supplied without a hard drive, allowing the installer to select storage capacity according to the required retention period and avoid unnecessary hardware.
  • The low-voltage DC design and integrated PoE architecture reduce the need for separate camera power supplies and additional network hardware.
Warranty Information

HiLook network video recorders are commonly supplied in Australia with a 3-year manufacturer or authorised-distributor warranty, subject to the seller's terms and proof of purchase.

Available Now

Available through Hikvision HiLook and authorised Australian security-equipment distributors.
