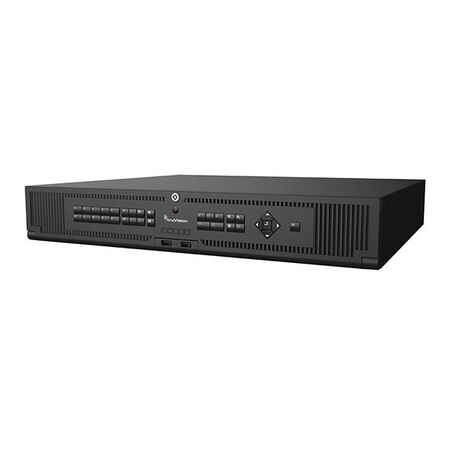

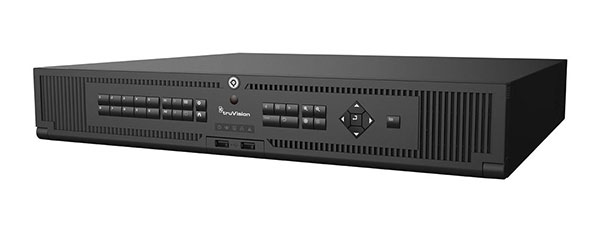

8 Channel Pro NVR H.264/H.265 80 Mbps Bandwidth PoE TruVision

BRAND: Ness
SKU: 121-104
$1,442.00 List price: $1,922.70
+ −
30 Days Return Electricians Unlock Trade Access
TruVision 8 channel Pro NVR features H.264 and H.265 encoding, 80 Mbps bandwidth and PoE support. Ideal for CCTV installs.

Alternatively Known As: TVN-2208S, TVN-2208S-4T, TVN-2208S-8T, TruVision 8-Channel PoE NVR, TruVision NVR 22S

Technical Specifications
  • Video Inputs: 8-channel IP video
  • Video Compression: H.265, H.264 and MPEG-4
  • Incoming Bandwidth: 80 Mbps
  • PoE Ports: 8 x RJ45
  • PoE Standard: IEEE 802.3af/at
  • PoE Budget: 120 W total
  • Maximum PoE Output: 30 W per port
  • Maximum Recording Resolution: 8 MP
  • Network Interface: 1 x Gigabit Ethernet port
  • Storage Interfaces: 4 x SATA, supporting up to 6 TB per drive
  • Expansion Interface: 1 x eSATA
  • Video Outputs: HDMI and VGA
  • Alarm Interfaces: 16 alarm inputs and 4 alarm outputs
  • Power Supply: 100–240 V AC, 50–60 Hz
  • Operating Temperature: -10 °C to +55 °C
  • Operating Humidity: 10–90% relative humidity
  • Chassis: 19-inch, 1.5U rack-mountable
  • Dimensions (H x L x W): 74mm x 442mm x 371mm
  • Weight: 5 kg
Key Features
  • Eight-channel IP video recording for CCTV systems
  • Supports both H.264 and H.265 video compression
  • 80 Mbps incoming video bandwidth
  • Eight integrated PoE ports for direct camera connection
  • IEEE 802.3af/at PoE support with up to 30 W per port
  • Supports recording resolutions up to 8 MP
  • HDMI output supports up to 4K display resolution
  • Four SATA interfaces for expandable local storage
  • Rack-mountable 1.5U chassis
  • Compatible with TruVision and ONVIF IP cameras
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security or electrical installer. Mains connection, PoE cabling and CCTV commissioning should follow applicable Australian electrical, cabling and video-surveillance requirements, including AS/NZS 3000 and AS/NZS 62676 where relevant.
Applications
  • Commercial CCTV surveillance systems
  • Retail and small-business security installations
  • Industrial and warehouse monitoring
  • Office and building security systems
  • IP camera systems requiring integrated PoE connectivity
  • Rack-mounted security and network equipment installations
Standards & Compliance
  • Applicable CCTV system requirements: AS/NZS 62676.1.1:2020
  • Applicable video transmission requirements: AS/NZS 62676.1.2:2020
  • Applicable IP video transmission protocols: AS/NZS 62676.2.1:2020
  • Mains electrical installation requirements: AS/NZS 3000:2018, where applicable
  • Product-specific Australian certification should be confirmed against the supplied regional model and power supply
Environmental Benefits
  • H.265 compression can reduce recording bandwidth and storage requirements compared with H.264, potentially reducing storage hardware capacity and energy use
  • Integrated PoE reduces the need for separate camera power supplies and associated cabling
  • Expandable storage and rack-mountable construction can support a longer service life and reduce replacement waste
  • Designed for use with IP surveillance systems, supporting efficient digital video distribution over network cabling
Warranty Information

TruVision cameras and recorders are covered by a 3-year warranty from date of manufacture under the Australian distributor warranty policy, subject to the applicable terms and conditions.

Available Now

Available through TruVision and authorised Australian security-equipment distributors, subject to regional model and storage configuration.
