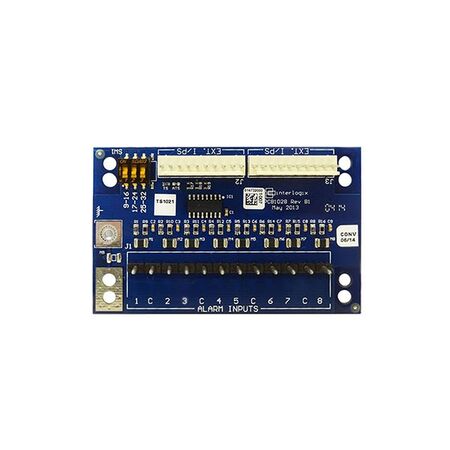

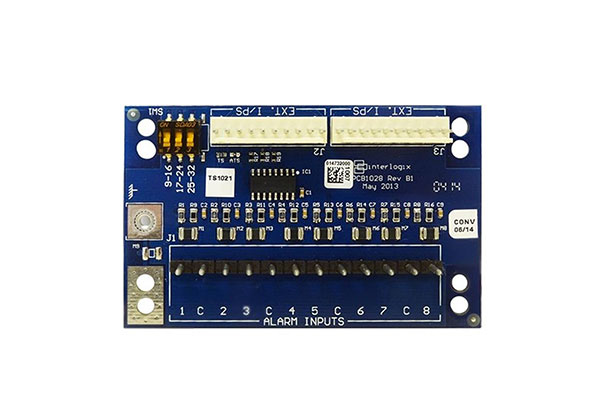

8 Input Expander Board Tecom
Tecom 8 input expander board. Ideal for adding zones to alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tecom 8-Input Expander Board, Challenger 8-Zone Expander, Tecom Zone Expansion Module, S5017 Expansion Module
Technical Specifications
- Model: TS0021
- Input Capacity: 8 alarm inputs
- Input Voltage: 10.5–13.8 V DC, supplied by the DGP
- Operating Current: 10 mA maximum
- Connection: Supplied 10-way cable to DGP
- Addressing: Individually addressed by DIP switches
- Maximum per DGP: Up to 3 expanders, subject to system restrictions
- EOL Resistor Options: 10 kΩ, 6.8 kΩ, 5.6 kΩ, 4.7 kΩ, 3.7 kΩ, 3.3 kΩ, 2.2 kΩ and 2.2 kΩ/6.8 kΩ
- Compatible DGPs: TS0820, TS0824, TS0866 and TS1020
- Board Format: B-size board
- Dimensions (H x L x W): 15mm x 80mm x 52mm
- Weight: 0.1 kg
Key Features
- Adds eight wired alarm inputs to a compatible Tecom Data Gathering Panel
- Supports detection sensors and other supervised alarm inputs
- Up to three modules can be connected to one DGP, increasing capacity to 32 inputs
- Includes the connection cable required between the expander and DGP
- Compact board-only format for installation inside a compatible enclosure
- Designed for Tecom Challenger security and access-control systems
Professional Installation Requirements
- Installation, addressing and programming should be performed by a qualified security technician. The module must be installed inside a compatible Tecom enclosure and connected to the DGP in accordance with the manufacturer's installation instructions and applicable alarm-system requirements.
Applications
- Expanding wired zones on Tecom Challenger alarm systems
- Adding door, window, motion and other detection sensors
- Increasing input capacity on Tecom Data Gathering Panels
- Commercial, industrial and institutional intrusion alarm installations
Standards & Compliance
- AS/NZS 2201.1:2007 — relevant to the design, installation, commissioning and maintenance of intruder alarm systems; product-specific conformity is not stated in the available datasheet
Environmental Benefits
- Low operating current of up to 10 mA helps minimise energy consumption within the alarm system
- Extends the service life and capability of compatible alarm infrastructure, potentially reducing replacement of the complete control system
- Electronic components and printed circuit boards may be recoverable through appropriate e-waste recycling channels
Warranty Information
Interlogix warranty documentation lists a five-year warranty category for hardwired contacts, passive modules and components; confirm the applicable Australian warranty terms for this Tecom module before purchase.
Available Now
Available through Tecom/Interlogix channels and authorised Australian security-system distributors; confirm current stock and compatibility before ordering.
