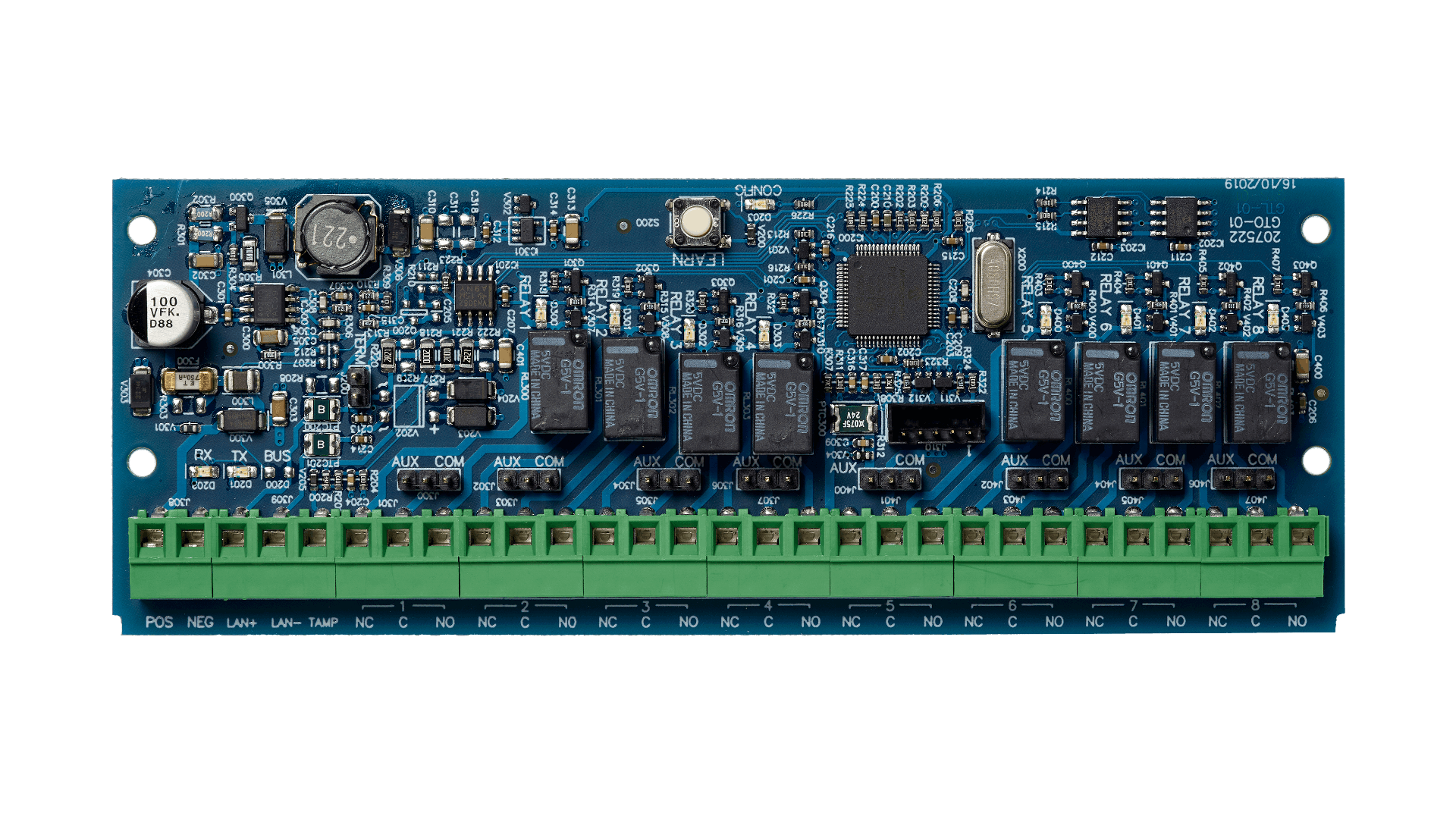

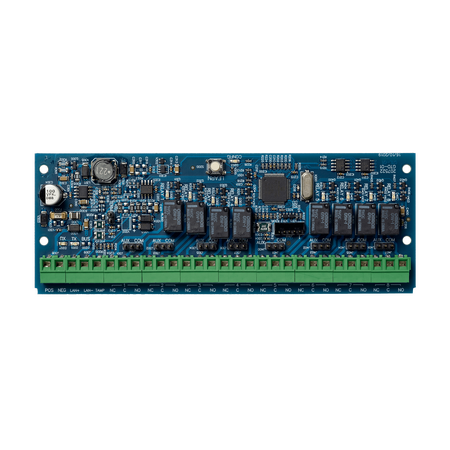

8 Output Expander PCB | SPDT Form C Relays | Firmware Upgradeable | by Reliance XR
The 8 Output Expander PCB enhances your security system with 8 SPDT Form C relay outputs, offering three selectable operating modes for versatile applications. Ideal for expanding XR Pro and GenConnect alarm panels, this firmware upgradeable module ensures compliance with EN50131-3 CLASS II GRADE 2 standards, making it perfect for industrial and commercial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 8 Output Expander PCB | SPDT Form C Relays | Firmware Upgradeable | by Reliance XR
Brand: Reliance XR
SKU: NXG-508N
Alternatively Known As: XR Series 8 Output Expander, NXG-508N Relay Expander, XR Pro Relay Module
Technical Specifications
- 8 relay outputs, Single Pole Double Throw (SPDT) Form C
- 3 operating modes selectable via jumper per output
- Status LED for each relay output
- Separate box tamper input
- Firmware upgradeable via USB or network
- NetworX form factor
- Dimensions (H x L x W): 25mm x 100mm x 120mm
- Weight: 0.3 kg
Key Features
- Adds 8 additional relay outputs to XR Pro, GenConnect panels
- Single Pole Double Throw (SPDT) Form C relays
- 3 selectable operating modes per output: dry contact, switch bus or external voltage, switch bus ground
- Status LED indicator for each relay output
- Separate box tamper input for enhanced security
- Firmware upgradeable via USBUP-EUR flash tool or DLX900 over network
- Complies with EN50131-3 CLASS II GRADE 2, INCERT T031 security standards
Professional Installation Requirements
- Installation by a qualified security system technician or licensed electrician is recommended to ensure compliance and optimal performance.
Applications
- Security systems expansion for XR Pro and GenConnect alarm panels
- Industrial and commercial alarm system installations requiring additional relay outputs
- Integration with access control and monitoring systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Meets EN50131-3 CLASS II GRADE 2 security standard
Environmental Benefits
- Enables efficient expansion of existing alarm systems reducing need for full system replacement
- Supports low power consumption relay outputs for energy-efficient operation
Warranty Information
1 year warranty covering manufacturing defects and workmanship.
Available Now
The RELIANCE S116109 XR SERIES 8 Output Expander PCB is available for immediate purchase, ideal for expanding relay outputs in security alarm systems.
