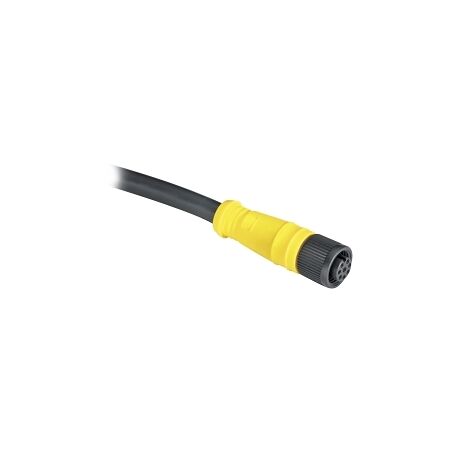

8 Pin DC Micro Cordset | 1m Length | IP69K Rated | M12 Connector by NHP
8-pin DC micro cordset with 1m length and IP69K rating—ideal for industrial automation and control systems. Built for reliable connections, with durable PVC construction and M12 connectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AB 889D Cordset PVC Red 8 Pin 22AWG DC Micro Male Straight DC Micro Female Straight M12 1m
Brand: NHP
SKU: 889DF8NBDM1
Alternatively Known As: DC Micro Connector, 8 Pin Cordset, M12 Connector
Technical Specifications
- Rated Current: 1.5 A
- Rated Voltage: 30 V
- Number of Poles: 8
- Type of Plug: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Other
- Material of Contact Surface: Gold
- Degree of Protection: IP69K
- Mounting Method: Freely positionable
- AWG Size: 24
- Cable Diameter: 14 mm
- Cable Length: 1000 mm
- Screw-in Thread: M12
- Operating Temperature: -20-80 °C
- Dimensions (H x L x W): 14mm x 1000mm x 14mm
- Weight: 0.3 kg
Key Features
- 8-pin configuration for versatile connectivity.
- IP69K rated for high protection against dust and water.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation and control systems
- Commercial: Machinery and equipment connections
- General: Any application requiring reliable DC micro connections
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 889D Cordset PVC Red 8 Pin 22AWG DC Micro is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable connections.
Non-Returnable & Non-Cancellable
