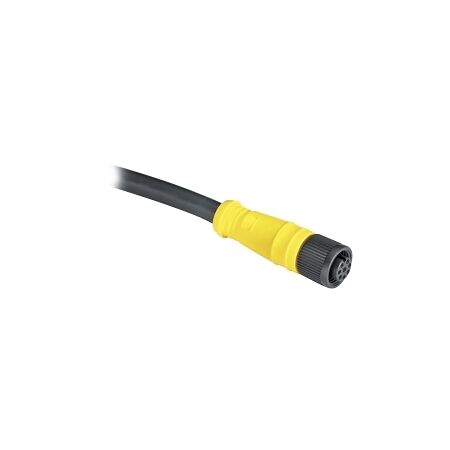

8-Pin DC Micro Female Cordset | 15m PVC Black | IP69K Rated by NHP
8-pin DC micro female cordset with 15m length and IP69K rating—ideal for industrial automation and machinery connections. Built for reliable power and signal transmission, with durable PVC construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AB 889D Cordset Cable PVC Black 8 Pin 24AWG DC Micro Female Straight M12 Unshielded 15m
Brand: NHP
SKU: 889DF8AB15
Alternatively Known As: M12 Micro Connector Cable, 8 Pin DC Cable, PVC Black Cordset
Technical Specifications
- Rated Current: 1.5 A
- Rated Voltage: 36 V
- Number of Poles: 8
- Type of Plug: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Other
- Material of Contact Surface: Gold
- Degree of Protection: IP69K
- Mounting Method: Freely positionable
- AWG Size: 24
- Cable Diameter: 14 mm
- Operating Temperature: -20 to 80 °C
- Dimensions (H x L x W): 14mm x 15000mm x 14mm
- Weight: 1.5 kg
Key Features
- 8-pin female connector for versatile applications.
- IP69K rated for high protection against dust and water.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, machinery connections
- Commercial: Equipment requiring reliable power and signal transmission
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Complies with relevant standards for electrical safety and performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 889D Cordset Cable PVC Black 8 Pin 24AWG DC Micro Female Straight M12 15m is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable connections.
