8 Pin DC Micro Female Cordset | 24AWG | 5m PVC Black | IP69K by NHP
8-pin DC micro female cordset with 24AWG and 5m length—ideal for industrial automation and commercial equipment. Built for reliable connections, with IP69K protection and durable PVC construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

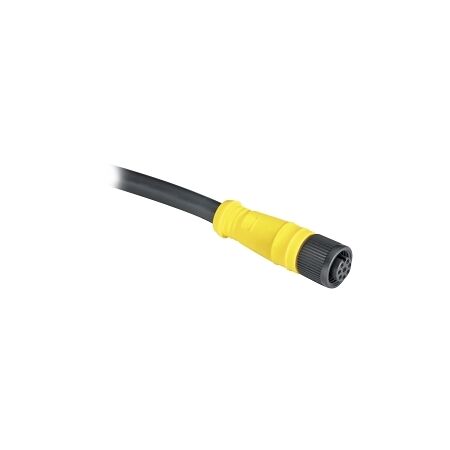

Product Name/Title: AB 889D Cordset Cable PVC Black 8 Pin 24AWG DC Micro Female Straight M12 Unshielded 5m
Brand: NHP
SKU: 889DF8AB5
Alternatively Known As: M12 Micro Connector, 8 Pin DC Cable, PVC Black Cordset
Technical Specifications
- Rated Current: 1.5 A
- Rated Voltage: 36 V
- Number of Poles: 8
- Type of Plug: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Other
- Material of Contact Surface: Gold
- Degree of Protection: IP69K
- Mounting Method: Freely positionable
- AWG Size: 24
- Cable Diameter: 14 mm
- Operating Temperature: -20 to 80 °C
- Dimensions (H x L x W): n/a mm x 5000mm x n/a mm
- Weight: 0.5 kg
Key Features
- 8-pin female connector for reliable connections.
- Rated for 1.5 A and 36 V, suitable for various applications.
- IP69K rated for high protection against dust and water.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, machinery connections
- Commercial: Equipment power supply, control systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 889D Cordset Cable PVC Black 8 Pin 24AWG DC Micro Female Straight M12 is available now for immediate purchase. Ideal for industrial and commercial applications.
