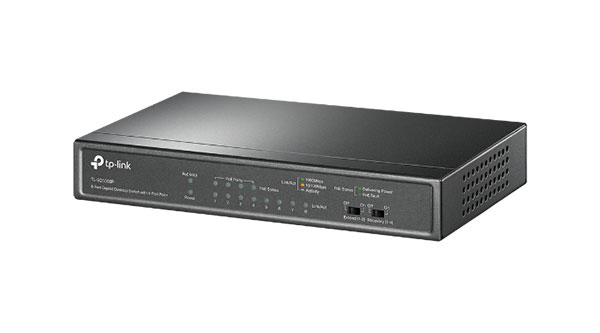

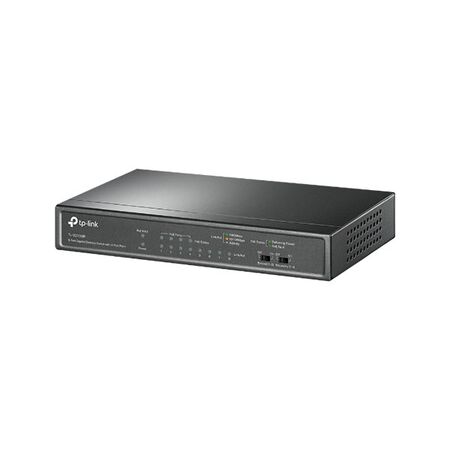

8-Port Gigabit PoE Switch 64W Plug-and-Play TP-Link Ness
Ness TP-Link 8-port gigabit PoE switch features 64W total power and plug-and-play setup. Ideal for CCTV and network installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 8-Port Gigabit PoE Switch, 4-Port PoE+ Network Switch, Unmanaged PoE Ethernet Switch
Technical Specifications
- Model: TL-SG1008P
- Network Ports: 8 x 10/100/1000 Mbps RJ45
- PoE Ports: Ports 1–4
- PoE Standard: IEEE 802.3af/at
- PoE Output: Up to 30 W per PoE port
- Total PoE Power Budget: 64 W
- Switching Capacity: 16 Gbps
- MAC Address Table: 4K
- Forwarding Mode: Store and forward
- Cable Distance: Up to 100 m under standard Ethernet operation
- Extended Transmission: Up to 250 m on supported ports in Extend Mode
- Installation: Desktop or wall mountable
- Cooling: Fanless
- Power Supply: External power adapter
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 10% to 90% non-condensing
- Certifications Listed by Manufacturer: CE, FCC
- Dimensions (H x L x W): 27mm x 171mm x 98mm
- Weight: 0.36 kg
Key Features
- Eight Gigabit Ethernet ports for high-speed network connectivity
- Four IEEE 802.3af/at PoE+ ports supply data and power through one Ethernet cable
- 64 W total PoE power budget for compatible IP cameras, access points and IP phones
- Plug-and-play operation with no configuration required
- Auto-negotiation and Auto MDI/MDIX simplify installation
- 802.1p and DSCP QoS support for latency-sensitive traffic
- IGMP Snooping optimises multicast traffic for CCTV and video applications
- PoE Auto Recovery can automatically restart unresponsive powered devices
- Fanless design provides quiet operation with no cooling fan maintenance
- Desktop or wall-mountable form factor
Professional Installation Requirements
- No specialist installation is normally required for the switch; connect the supplied power adapter and Ethernet cables. Fixed Ethernet cabling within a building should be installed and tested by a suitably qualified installer in accordance with applicable local requirements.
Applications
- IP CCTV camera networks
- Small office and home office Ethernet networks
- IP telephone systems
- Wireless access point deployment
- Security and access-control systems
- Network expansion for small commercial installations
Standards & Compliance
- AS/NZS 62368.1:2026 is the relevant Australian/New Zealand safety standard for audio/video and information and communication technology equipment; product-specific conformity evidence was not stated in the available datasheet.
- IEEE 802.3af/at and IEEE 802.3 Ethernet standards are specified by the manufacturer for network and PoE interoperability.
Environmental Benefits
- Fanless operation reduces energy use associated with active cooling and avoids cooling-fan replacement waste
- PoE supplies power and data over one Ethernet cable, potentially reducing separate power cabling and installation materials
- Long-term use in network and CCTV infrastructure can reduce replacement frequency and electronic waste
- The compact desktop design reduces material and space requirements compared with larger rack-mounted switches
Warranty Information
Ness warranty: 3 years from the date of purchase for Ness manufactured or supplied products, subject to the applicable warranty terms and Australian Consumer Law. TP-Link warranty terms may also apply where purchased through an authorised TP-Link channel.
Available Now
Available through Ness and authorised Australian security, CCTV and networking distributors.
