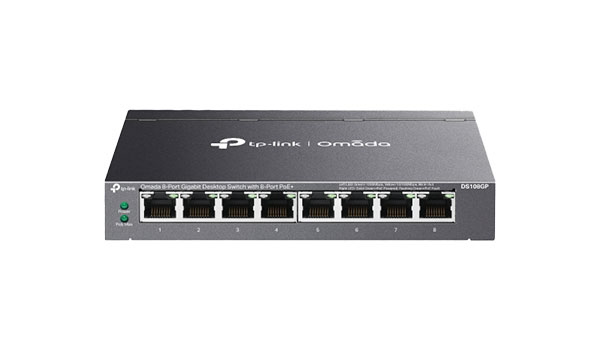

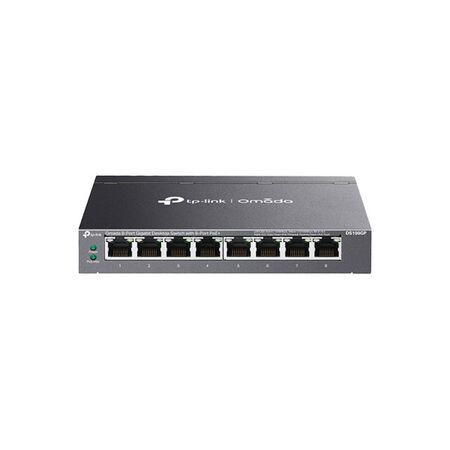

8-Port Gigabit PoE Switch 65W TP-Link DS108GP Ness
Ness TP-Link 8-port gigabit PoE switch features 65W PoE power. Ideal for CCTV and network installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Omada DS108GP, 8-Port Gigabit PoE Switch, 8-Port PoE+ Network Switch
Technical Specifications
- Ports: 8 x 10/100/1000 Mbps RJ45
- PoE Standard: IEEE 802.3af/at PoE+
- PoE Ports: Ports 1–8
- Total PoE Budget: 65 W
- Maximum PoE Output: 30 W per port
- Switching Capacity: 16 Gbps
- Packet Forwarding Rate: 11.904 Mpps
- MAC Address Table: 4K entries
- Jumbo Frame: 16 KB
- Transmission Method: Store-and-forward
- Power Supply: External 53.5 V DC, 1.31 A adapter
- Cooling: Fanless
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 10% to 90% RH, non-condensing
- Certifications: CE, FCC and RoHS
- Dimensions (H x L x W): 25mm x 101mm x 158mm
- Weight: 0.893 kg
Key Features
- Eight Gigabit Ethernet ports with PoE+ data and power transmission
- Supports up to 65 W total PoE power and 30 W per port
- Compatible with IEEE 802.3af/at powered devices
- Extend Mode provides up to 250 m data and power transmission on Ports 1–2 at reduced speed
- PoE Auto Recovery automatically reboots unresponsive powered devices
- IGMP Snooping, 802.1p/DSCP QoS and IEEE 802.3x flow control
- Fanless design for quiet operation
- Plug-and-play unmanaged operation
- Physical security lock provision
Applications
- CCTV camera installations
- Small office and commercial network infrastructure
- Wireless access point connectivity
- VoIP phone and other PoE device installations
- Residential and commercial Ethernet distribution
Standards & Compliance
- AS/NZS 62368.1:2026 is the applicable Australian/New Zealand safety standard category for information and communication technology equipment; verify the product's local declaration of conformity and RCM status before installation or sale.
Environmental Benefits
- RoHS compliance restricts the use of specified hazardous substances
- Fanless operation reduces operating noise and eliminates fan replacement requirements
- PoE delivery over a single Ethernet cable can reduce separate power cabling and installation materials
- Efficient network consolidation can reduce the number of separate power adapters and active network devices
- Long service life and automatic device recovery can reduce replacement-related material waste
Warranty Information
TP-Link Australia provides a 5-year limited warranty for Omada indoor switches purchased in Australia or New Zealand from an authorised retailer, subject to its warranty terms and proof-of-purchase requirements.
Available Now
Available through Ness, TP-Link and authorised Australian networking distributors.
