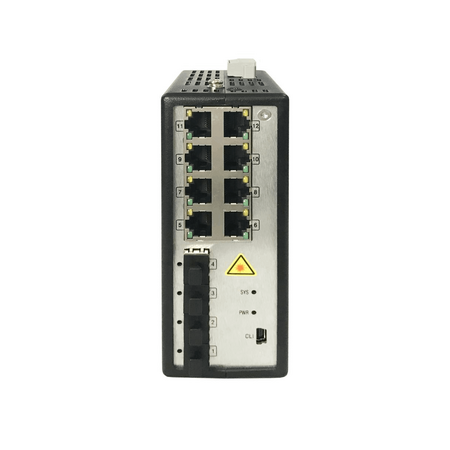

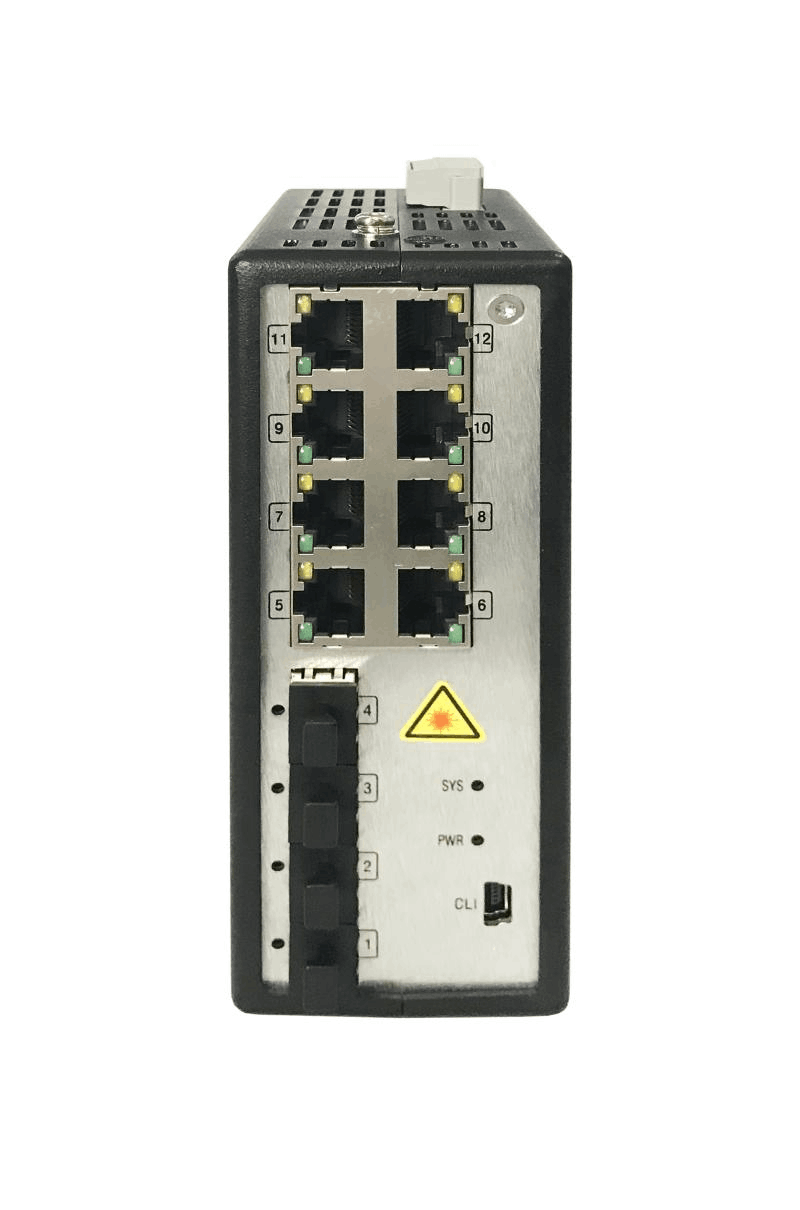

8-Port Managed PoE Switch | 240W Power | 4 SFP Uplink Ports | Fanless Design | by Dicker Data
The 8-Port Managed PoE Switch delivers 240W power with 4 SFP uplink ports, making it perfect for industrial and enterprise network environments. Designed for reliable performance, it supports advanced routing protocols and offers easy management through web browser and CLI. Ideal for surveillance systems and robust VLAN management, this fanless switch operates efficiently in temperatures from -40 °C to 75 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 8-Port Managed PoE Switch | 240W Power | 4 SFP Uplink Ports | Fanless Design | by Dicker Data
Brand: Dicker Data
SKU: DS-3T3512P
Alternatively Known As: Managed PoE Switch, Industrial PoE Switch, 8-Port PoE Network Switch, Layer 3 PoE Switch
Technical Specifications
- Ports: 4 × 1000BaseX SFP, 8 × 802.3af/at PoE/PoE+ 10/100/1000BaseT, 1 × Management Serial CLI Port
- PoE Power: Up to 30W per PoE port, total 240W
- Routing Protocols: Static routing, policy routing, RIP, OSPF
- Management: Web browser, CLI, Telnet, serial console
- Multicast: IGMP snooping, GRMP
- VLAN: Port-based VLAN, IEEE 802.1Q VLAN, GVRP
- QoS: IEEE 802.1P/1Q, TOS/DiffServ
- SNMP: v1/v2c/v3
- Housing: Die-casting aluminum alloy
- Operating Temperature: -40 °C to 75 °C
- Cooling: Fanless
- Dimensions (H x L x W): 45mm x 180mm x 250mm
- Weight: 2.5 kg
Key Features
- 4 × 1000BaseX SFP Ports for uplink connectivity
- 8 × 802.3af/at PoE/PoE+ 10/100/1000BaseT Ports with up to 30W output per port
- Supports static routing, policy routing, RIP, OSPF and other Layer 3 routing protocols
- Easy network management via web browser, CLI, Telnet, and serial console
- IGMP snooping and GRMP for multicast traffic filtering
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP support
- QoS (IEEE 802.1P/1Q and TOS/DiffServ) for traffic prioritization
- SNMPv1/v2c/v3 support for network management
- PoE device detection and power management
- Dual redundant power inputs design for DC models
- Die-casting aluminum alloy housing
- Fanless design with wide operating temperature range from -40 °C to 75 °C
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial network environments requiring managed PoE switches
- Enterprise and commercial network infrastructure
- Surveillance systems requiring PoE power for cameras
- Network setups needing robust routing and VLAN management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Fanless design reduces energy consumption and noise pollution
- Supports efficient power management for PoE devices to reduce energy waste
Warranty Information
5 years warranty provided by the manufacturer.
Available Now
The HIKVISION INDUSTRIAL 3T3512P 8PORT MANAGED POE SWITCH is available for immediate purchase, ideal for industrial and enterprise network infrastructure requiring reliable PoE and advanced routing.
