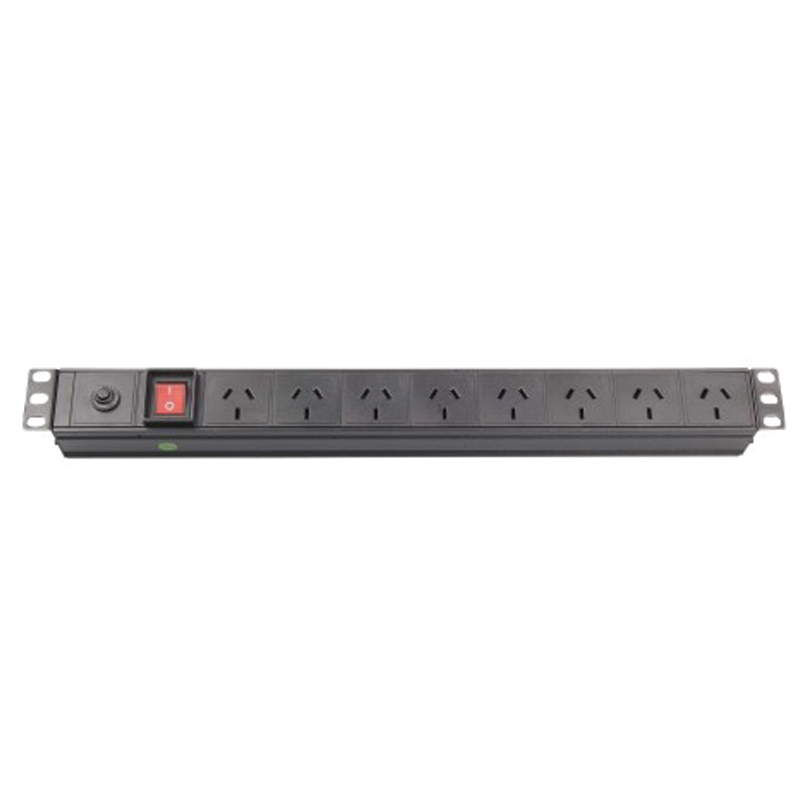

8-Port Power Board for Data Cabinets | 1U Rack Mount | 10A Australian Sockets | Surge Protection | by Cornick
The 8-Port Power Board for Data Cabinets is designed for efficient power management in data centers and server racks. Featuring 8 x 10A Australian sockets and a backlit master switch, this robust power board ensures safe and reliable operation. Built with a sturdy aluminium-alloy casing and surge protection, it's perfect for networking and communication equipment, making it an essential addition to your IT infrastructure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rack mount size: 1U height for 19" cabinets
- Number of sockets: 8
- Socket type: 10A 3-pin Australian sockets
- Power switch: Backlit master switch with protective cover
- Casing material: Aluminium-alloy metal
- Power cord length: 1.8 meters
- Surge protection: Included
- Dimensions (H x L x W): 44mm x 100mm x 482mm
- Weight: 1.5 kg
Key Features
- 1U height suitable for 19" horizontal rack mount cabinets
- 8 x 10A 3-pin Australian sockets
- Backlit master power switch with protective cover
- Sturdy aluminium-alloy metal casing
- Thick 1.8m power cord
- Surge protection included
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper rack mounting.
Applications
- Data cabinets and server racks
- Networking and communication equipment power supply
- IT infrastructure and data center power management
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Surge protection helps extend the lifespan of connected equipment, reducing electronic waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cornick 8-Port Power Board for Data Cabinets VIP Vision 1U Rack Mount is available for immediate purchase, ideal for data centers, server rooms, and networking cabinets.
