8 Way Active Audio Splitter | AUX Input | USB Powered | Compact Design by Matchmaster
8 way active audio splitter with AUX input and USB power—ideal for home and professional audio setups. Built for versatile audio distribution, with a compact and portable design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

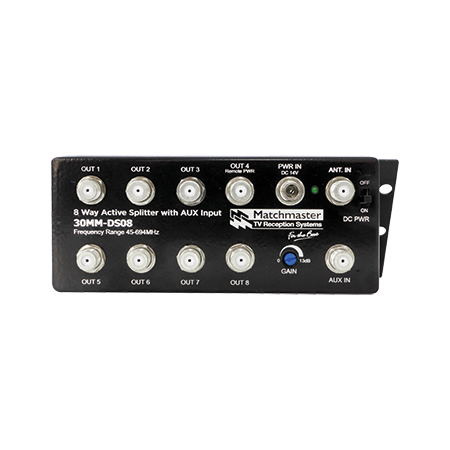

Product Name/Title: 8 Way Active Splitter with Aux Input
Brand: Matchmaster
SKU: 30MM-DS08
Alternatively Known As: 8 Way TV Signal Splitter, Active TV Splitter with Aux Input, DigiHUB 8 Way Splitter
Technical Specifications
- 2 input, 8 output splitter amplifier
- Built-in amplifier with gain control
- 4G filter included
- Remote or local DC power options
- Max output: 85dBuV per port
- Power supply: 14VDC 300mA included
- Dimensions (H x L x W): 60mm x 57mm x 156mm
- Weight: 0.3 kg
Key Features
- 2 inputs (FTA antenna and local services) combined for distribution
- Built-in amplifier with gain control
- 4G filter to prevent interference
- Remote powered from output 4 or locally powered by DC jack
- Pass power to masthead amplifier via input port (switch activated)
- Max 85dBuV output per port
- Power supply (14VDC 300mA) included
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal signal distribution and compliance with electrical safety standards.
Applications
- Distribution of FTA and in-house TV channels in DigiHUB enclosures
- Residential and commercial TV signal distribution
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces need for multiple antennas by efficiently distributing signals
- Built-in 4G filter minimizes interference, improving signal quality and reducing electronic waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 8 Way Active Splitter with Aux Input is available now for immediate purchase. Ideal for residential and commercial TV signal distribution within DigiHUB enclosures.
