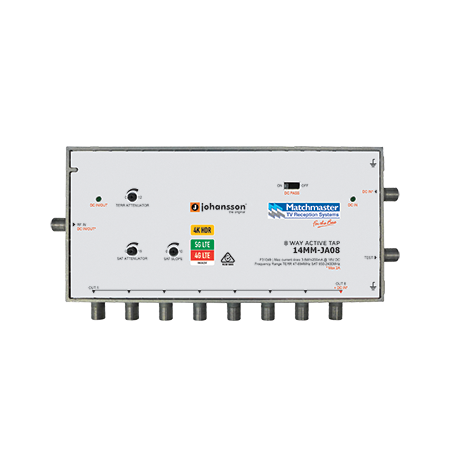

8 Way Active Tap for FTA & Satellite | 47-2400MHz | 8 Outputs | Amplified by Matchmaster
8 way active tap with 47-2400MHz range and 8 outputs—ideal for homes and offices with multiple TV setups. Built for enhanced signal distribution, with active amplification for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Terrestrial frequency range: 47-694 MHz
- Satellite frequency range: 950-2400 MHz
- Return Loss: Typically 12 dB (47-694 MHz), Minimum >10 dB (950-2400 MHz)
- Port to Port Isolation: Typically 30 dB (47-694 MHz), Minimum >27 dB (950-2400 MHz)
- Screening effectiveness: ≥75 dB (30 MHz to 1000 MHz), ≥65 dB (1000 MHz to 2400 MHz)
- Input Port: Single F female connector
- Output Port: F female connectors
- Test Port: -20 dB
- FTA Gain: 12 dB
- Satellite Gain: 15 dB
- Upper Limit Gain: 90 dBμV for FTA & SAT and TER & SAT
- FTA Fixed Slope Control: 4 dB
- Satellite Slope Control (950-2400 MHz): 0-10 dB adjustable
- Isolation at any output FTA - SAT: ≥35 dB via internal diplexer
- Powering Options: External power supply, input port, output port
- Input Voltage: 12–20 V for all DC power ports
- Max Current: 2.0 A at RF input port, RF output port, and DC input port
- Power Consumption: 200 mA at 18 V
- Voltage present at input port: Switchable on/off power at RF input 18 volts with 2 amp load option
- Dimensions (H x L x W): 50mm x 125mm x 240mm
- Weight: 0.5 kg
Key Features
- Foxtel (F31049) approved eight-way active tap
- Remotely powered via input port, output port or locally powered by DC Aux port
- Built-in gain and slope controls for satellite with gain control and 4dB fixed slope for terrestrial
- Terrestrial frequency range 47-694MHz, satellite frequency range 950-2400MHz
- Small footprint for ease of installation in tight riser and enclosure spaces
Professional Installation Requirements
- Professional installation by a qualified technician or installer is recommended to ensure proper setup and compliance with Foxtel and Australian standards.
Applications
- Residential MDU FTA and Foxtel systems
- Aged care FTA and Foxtel systems
- Commercial FTA and Foxtel systems
- Free-to-air and satellite single-wire SMATV solutions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Efficient signal distribution reduces need for multiple devices, lowering energy consumption
- Remote powering options reduce power wastage and improve installation flexibility
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty terms for details.
Available Now
The Matchmaster 8 Way Active Tap for FTA and Satellite is available now for immediate purchase. Ideal for residential, aged care, and commercial FTA and Foxtel satellite systems.
