8 Way F Type Splitter 5-2400MHz | DC Power Pass | Metal Housing by Matchmaster
8 way F type splitter with 5-2400MHz frequency range and DC power pass on all ports—ideal for home entertainment and commercial systems. Built for reliable signal distribution, with durable metal housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

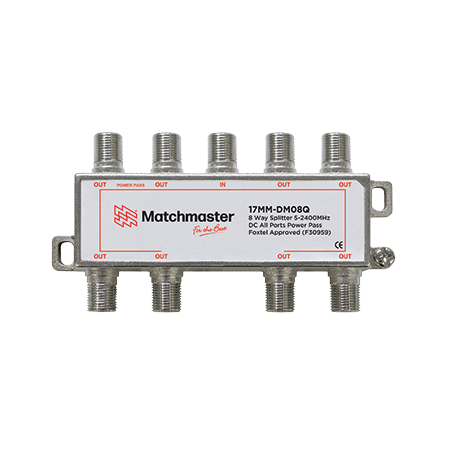

Product Name/Title: 8 Way ‘F’ Type Splitter 5-2400MHz DC All Ports Power Pass (Bag)
Brand: Matchmaster
SKU: 17MM-DM08QB
Alternatively Known As: 8 Way F Type Splitter, Satellite Splitter, Terrestrial TV Splitter, DC Power Pass Splitter
Technical Specifications
- Frequency Range: 5-2400MHz
- Insertion Loss (In-Out): 11.5-17.5dB
- Return Loss (In/Out): 10dB
- Isolation (Out-Out): ≥23dB
- Dimensions (H x L x W): 20mm x 100mm x 80mm
- Weight: 0.1 kg
Key Features
- Foxtel approved (F30959)
- Suitable for both satellite & FTADC power pass all ports
- 10dB extra screening with soldered back
- Frequency range 5-2400MHz
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper signal distribution and safety.
Applications
- Satellite TV connections
- Terrestrial TV connections
- Use with DC masthead amplifiers
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 8 Way ‘F’ Type Splitter 5-2400MHz DC All Ports Power Pass is available now for immediate purchase. Ideal for satellite and terrestrial TV signal distribution applications.
