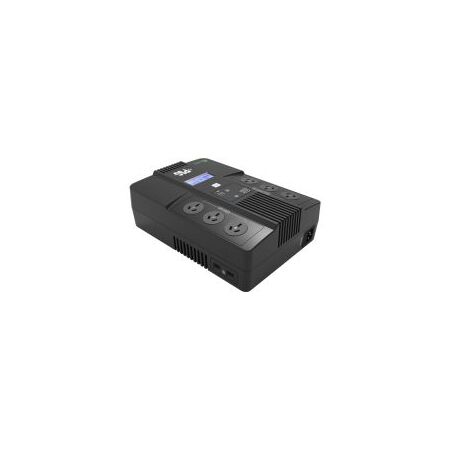

800VA Line-Interactive UPS with LCD 6 Outlets ECO

BRAND: CABAC
SKU: ECO800L
$214.50 List price: $286.00
+ −
30 Days Return Electricians Unlock Trade Access
ECO 800VA line-interactive UPS features LCD display, 6 outlets (3 surge only, 3 UPS plus surge) and auto-restart. Ideal for CCTV, PCs and modems.

Alternatively Known As: ECO 800VA UPS, ECO800L Powerboard UPS, PSS Eco 800VA UPS, Battery Backup UPS

Technical Specifications
  • Model: ECO800L
  • Capacity: 800VA / 480W
  • Topology: Line-interactive
  • Input Voltage: 230Vac
  • AVR Voltage Range: 162-290Vac
  • Output Voltage Regulation: 230Vac ±10%
  • Waveform: Modified/simulated sine wave
  • Transfer Time: Typically 2-6ms
  • Display: LCD showing input/output voltage, battery level, load level and UPS status
  • UPS Outlets: 3 x AS/NZS 3112 Type I 10A
  • Surge-Only Outlets: 3 x AS/NZS 3112 Type I 10A
  • Battery: 1 x 12V 9Ah sealed lead-acid battery
  • Battery Charging: 2A maximum
  • Recharge Time: 6-8 hours to 90% capacity after complete discharge
  • Communication: USB
  • Software: Intelligent monitoring and control software supplied
  • Protection: Surge, overload, short circuit and low-battery protection
  • Surge Protection: 125 joules / 4500A
  • Operating Temperature: 0-40°C
  • Functions: AVR, cold start and auto-restart
  • Dimensions (H x L x W): 90mm x 190mm x 270mm
  • Weight: 5.2 kg
Key Features
  • LCD status display
  • Six Australian Type I outlets, including three UPS-backed and three surge-only outlets
  • Automatic voltage regulation with boost and buck correction
  • USB communication for monitoring and power management
  • User-replaceable sealed lead-acid battery
  • Cold-start capability for battery operation without mains power
  • Auto-restart when mains power is restored
  • Compatible with generators
  • Audible alarms and automatic startup diagnostics
Professional Installation Requirements
  • Plug-in equipment; fixed-wiring installation is not required. Follow the manufacturer's operating and battery-replacement instructions, and use a licensed electrician if the UPS is incorporated into a fixed electrical installation.
Applications
  • Desktop computers and workstations
  • CCTV cameras and recording equipment
  • Modems, routers and NBN equipment
  • Telecommunications equipment
  • Point-of-sale systems
  • Home-office electronics and network devices
Standards & Compliance
  • AS 62040.1:2019 is the applicable Australian safety standard for low-voltage uninterruptible power systems
  • Outlet format: AS/NZS 3112 Type I 10A sockets
Environmental Benefits
  • User-replaceable battery can extend service life and reduce electronic waste
  • Automatic voltage regulation can reduce unnecessary battery operation during moderate voltage fluctuations
  • Sealed lead-acid battery is replaceable and recyclable through appropriate battery-recycling channels
  • Compact design and power-management functions help reduce energy use and equipment replacement frequency
Warranty Information

PSS standard warranty: 2-year return-to-base warranty from the original purchase date, subject to the manufacturer's warranty terms.

Available Now

Available through PSS and authorised Australian distributors, subject to distributor stock levels.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
