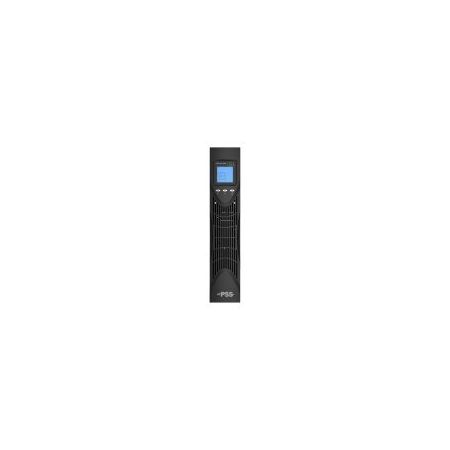

800VA Online UPS 10Hr CCTV Backup Rack or Tower Mount Camsecure
Camsecure 800VA online double conversion UPS features pure sinewave output, 10hr backup for an NVR and 16 cameras, and rack or tower mount. Ideal for CCTV systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CamSecure 800VA CCTV UPS, CAM10RT Online Double-Conversion UPS, 10-Hour CCTV Backup UPS
Technical Specifications
- Model: CAM10RT
- Capacity: 800 VA
- Topology: Online double conversion
- Input Voltage: 230 V ±20%
- Input Frequency: 45–65 Hz
- Input Phase: Single phase
- Input Power Factor: ≥0.98
- Output Voltage: 230 VAC ±2%
- Output Frequency on Battery: 50 Hz ±0.1 Hz
- Output Waveform: Pure sinewave
- Output Total Harmonic Distortion: ≤3% linear load; ≤5% non-linear load
- Battery Type: Sealed lead-acid, maintenance-free
- Rated Battery Voltage: 36 V
- Recharge Time to 90%: Approximately 5 hours
- Output Sockets: 2 x Australian three-pin sockets, including one critical and one non-critical output
- Communications: USB and RS-232; optional SNMP and relay cards
- Protection: Surge protection, resettable circuit breaker, RJ45 network protection and emergency power off
- Efficiency: 89% normal mode; up to 97% ECO mode
- Noise Level: <50 dB at 1 m
- Mounting: 10RU rack or tower mount
- Estimated Runtime: Up to 10 hours for suitable CCTV loads; actual runtime varies with connected equipment and battery condition
- Dimensions (H x L x W): 432.5mm x 430mm x 440mm
- Weight: 95.1 kg
Key Features
- Provides continuous online double-conversion power protection for CCTV equipment
- Pure sinewave output suitable for NVRs, cameras and other sensitive electronic loads
- Designed for extended runtime applications with additional battery-bank compatibility
- Rack or tower mounting configuration
- Constant 230 V AC output regulation
- Generator compatible
- Interactive LCD display for load, battery, input and output information
- Emergency power off function
- Plug-and-play design with intelligent three-stage battery charging
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified electrical or UPS technician. Follow the manufacturer’s instructions and applicable Australian electrical installation requirements, including correct earthing, isolation, ventilation and battery safety procedures.
Applications
- CCTV systems requiring extended backup during mains power outages
- Network video recorders and surveillance camera systems
- Security control rooms and monitoring equipment
- Small network, communications and access-control equipment requiring regulated power
- Rack-mounted or tower-mounted security infrastructure
Standards & Compliance
- AS 62040.1:2019 – Uninterruptible power systems, Part 1: Safety requirements
Environmental Benefits
- Online power conditioning can help protect connected equipment and extend service life, reducing premature electronic waste
- ECO mode can reduce UPS energy consumption during suitable operating conditions
- Sealed lead-acid batteries should be recovered and recycled through an appropriate battery-recycling service at end of life
- Replaceable battery architecture can extend the usable life of the UPS and reduce whole-unit disposal
Warranty Information
Standard PSS Distributors warranty: 2-year return-to-base warranty from the original purchase date, subject to the manufacturer’s installation, operating and warranty conditions.
Available Now
Available through authorised Australian security, power-protection and electrical equipment distributors; confirm current stock and lead time before ordering.
UPS Sizing Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
