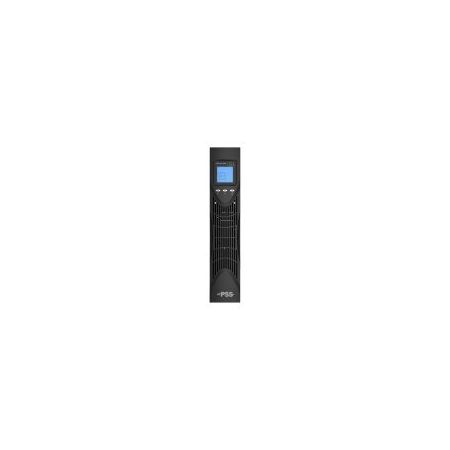

800VA Online UPS 14Hr CCTV Backup Tower Mount Camsecure
Camsecure 800VA online double conversion UPS features pure sinewave output, 14hr backup for an NVR and 16 cameras, and tower mount. Ideal for CCTV systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CamSecure 800VA CCTV UPS, CamSecure 14-Hour CCTV Backup UPS, Cam1RT UPS
Technical Specifications
- Capacity: 800VA
- Topology: Online double conversion
- Input Voltage Range: 230V ±20%
- Input Frequency Range: 45–65Hz
- Output Voltage: 230VAC ±2%
- Output Frequency in Battery Mode: 50Hz ±0.1Hz
- Power Factor: ≥0.98
- Waveform: Pure sinewave
- Output Sockets: 2 x Australian 3-pin sockets; 1 critical and 1 non-critical
- Input Socket: IEC C14 10A
- Battery Type: Sealed lead-acid, maintenance-free
- Rated Battery Voltage: 36V
- Recharge Time: Approximately 5 hours to 90%
- Efficiency: ≥89% in normal mode; up to 97% in ECO mode
- Communications: USB and RS-232; optional SNMP and relay cards
- Protection: 2,200 joules / 60,000 amps surge protection; resettable circuit breaker
- Operating Environment: 0–40°C; 0–95% relative humidity, non-condensing
- Noise Level: Less than 50dB at 1m
- Mounting: Rack or tower
- EMC: EN50091-2; RCM listed in product documentation
- Runtime: Approximately 14 hours for an NVR and 16 standard cameras, depending on actual load and battery condition
- Dimensions (H x L x W): 86.5mm x 430mm x 440mm
- Weight: 15.1 kg
Key Features
- Online double-conversion power protection for CCTV and security equipment
- Pure sinewave output suitable for NVRs, cameras and other sensitive electronics
- Extended-runtime design for an NVR and up to 16 standard cameras
- Rack or tower mounting capability
- Interactive LCD displaying input, output, battery, load and operating status
- Intelligent three-stage battery charging
- Generator compatible
- Emergency power-off function
- RJ45 network surge protection
- Plug-and-play configuration for standard installation
Professional Installation Requirements
- No electrician is required for the standard plug-and-play connection described by the manufacturer. Permanent or modified electrical installations, additional battery banks and hard-wired connections should be completed by a suitably licensed electrical professional in accordance with applicable Australian wiring requirements.
Applications
- CCTV NVR and camera backup
- Commercial and residential security systems
- Network and communications equipment
- Access control and electronic security systems
- Small IT and telecommunications equipment requiring extended runtime
Standards & Compliance
- The product documentation lists RCM and EMC compliance to EN50091-2; specific AS 62040.1 certification is not stated in the available datasheet.
- AS 62040.1 is the relevant Australian standard identified by the Electrical Equipment Safety System for portable UPS equipment.
Environmental Benefits
- Sealed lead-acid batteries are maintenance-free and can be recovered through established lead-acid battery recycling streams.
- Up to 97% ECO-mode efficiency can reduce energy losses during suitable operating conditions.
- Extended backup capability and replaceable battery design can help prolong the service life of connected CCTV equipment and reduce premature replacement waste.
Warranty Information
A specific CamSecure CAM14RT warranty period was not stated in the available product documentation. Confirm warranty terms with the authorised Australian distributor before purchase.
Available Now
Available through CamSecure and authorised Australian security, electrical and power-equipment distributors.
UPS Sizing Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
