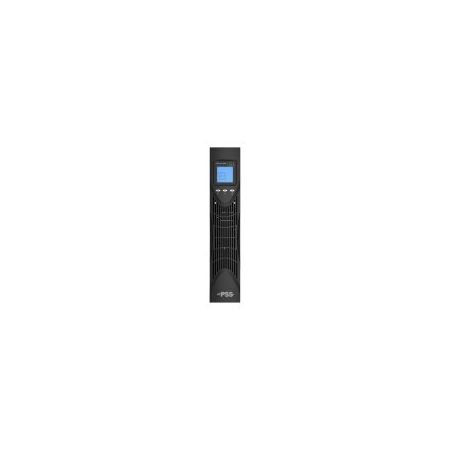

800VA Online UPS 1Hr CCTV Backup Rack or Tower Mount Camsecure
Camsecure 800VA online double conversion UPS features pure sinewave output, 1hr backup for an NVR and 16 cameras, and rack or tower mount. Ideal for CCTV systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CAM1RT, UPSEXTCAM1RT, CamSecure 1HR Extended Run Time UPS, 2RU CCTV UPS
Technical Specifications
- Capacity: 800 VA
- Topology: Online double conversion
- Output waveform: Pure sinewave
- Input voltage range: 230 V ±20%
- Input frequency range: 45–65 Hz
- Output voltage: 230 V AC ±2%
- Output frequency on battery: 50 Hz ±0.1 Hz
- Power factor: 0.9 minimum
- Input connection: IEC C14 10 A
- Output connections: 2 x Australian 3-pin sockets; 1 critical and 1 non-critical
- Battery type: Sealed lead-acid, maintenance-free
- Rated battery voltage: 36 V
- Recharge time: Approximately 5 hours to 90%
- Efficiency: 89% normal mode; up to 97% ECO mode
- Estimated runtime: Approximately 61 minutes with a standard NVR and 16 cameras
- Operating temperature: 0–40 °C
- Operating humidity: 0–95% non-condensing
- Noise level: Less than 50 dB at 1 m
- Communications: USB and RS-232
- Protection: Surge protection, resettable circuit breaker and emergency power off
- Mounting: 2RU rack or tower
- Compliance markings: RCM; EN 50091-2 EMC reference
- Dimensions (H x L x W): 86.5mm x 430mm x 440mm
- Weight: 15.1 kg
Key Features
- Provides continuous online double-conversion power protection for CCTV equipment
- Pure sinewave output suitable for NVRs, cameras and networking equipment
- Designed for approximately one hour of backup for an NVR and 16 standard cameras
- Regulated 230 V AC output within ±2%
- Rack or tower installation for flexible deployment
- Interactive LCD display for load, battery, input and output status
- Intelligent three-stage battery charging
- Generator compatible
- Emergency power off function
- RJ45 network surge protection
- Plug-and-play installation design
Professional Installation Requirements
- Installation and connection to mains power should be completed by a suitably qualified electrical contractor in accordance with AS/NZS 3000 and the manufacturer's instructions. Rack installation should use suitable support rails and allow adequate ventilation.
Applications
- CCTV and security camera systems
- NVR and DVR backup power
- Small commercial surveillance installations
- Security control rooms
- Network and communications equipment supporting CCTV systems
- Retail, office and residential security installations
Standards & Compliance
- AS 62040.1 – relevant Australian safety requirements for uninterruptible power systems
- AS 62040.2 – relevant electromagnetic compatibility requirements for UPS equipment
- AS/NZS 3000 – applicable electrical installation requirements for mains-connected installation
Environmental Benefits
- Online power conditioning can help protect connected equipment and reduce premature replacement caused by voltage disturbances
- ECO mode can provide efficiency of up to 97% under suitable operating conditions
- Maintenance-free sealed lead-acid batteries are replaceable and recyclable through appropriate battery-recycling channels
- Optional long-life battery upgrades can extend service life and reduce replacement waste
- Extended equipment life helps reduce electronic waste from damaged CCTV and networking equipment
Warranty Information
2-year return-to-base warranty through PSS Distributors, subject to proof of purchase and the supplier's warranty conditions.
Available Now
Available through CamSecure/PSS and authorised Australian security and electrical distributors; stock status may vary by distributor.
