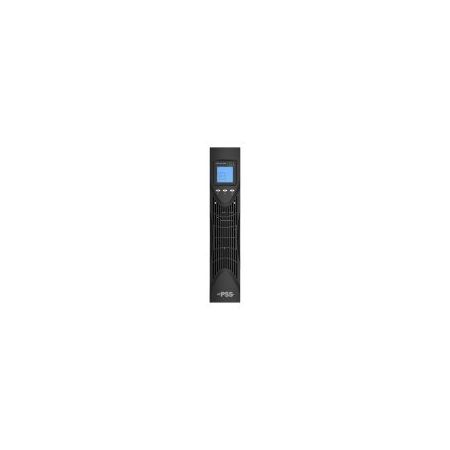

800VA Online UPS 36Hr CCTV Backup Tower Mount Camsecure

BRAND: CABAC
SKU: CAM36T
$10,480.50 List price: $13,974.00
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Camsecure 800VA online double conversion UPS features pure sinewave output, 36hr backup for an NVR and 16 cameras, and tower mount. Ideal for CCTV systems.

Alternatively Known As: CamSecure Cam 36T, CamSecure 800VA Extended Runtime UPS, CCTV Backup UPS

Technical Specifications
  • Model: CAM36T
  • Capacity: 800 VA
  • Topology: Online double conversion
  • Input Voltage: 230 V ±20%
  • Input Frequency: 45–65 Hz
  • Phase: Single phase
  • Input Power Factor: ≥0.98
  • Input Connection: IEC C14 10 A
  • Output Voltage: 230 VAC ±2%
  • Output Frequency on Battery: 50 Hz ±0.1 Hz
  • Output Waveform: Pure sinewave
  • Output Sockets: 2 × Australian 3-pin sockets, including 1 critical and 1 non-critical outlet
  • Total Harmonic Distortion: ≤3% linear load; ≤5% non-linear load
  • Efficiency: ≥89% normal mode; up to 97% ECO mode
  • Battery Type: Sealed lead-acid, maintenance-free
  • Rated Battery Voltage: 36 V
  • Maximum Charge Current: 12 A
  • Recharge Time: Approximately 5 hours to 90%
  • Backup Runtime: Up to 36 hours, dependent on connected load and battery condition
  • Communications: USB and RS-232; optional SNMP and relay cards
  • Protection: 2,200 joules / 60,000 amps surge protection
  • Network Protection: Full-time RJ45 protection
  • Operating Temperature: 0–40 °C
  • Operating Humidity: 0–95% non-condensing
  • Noise Level: <50 dB at 1 m
  • Mounting: Tower
  • Generator Compatible: Yes
  • Alarm Functions: Battery operation, low battery, overload and fault
  • Emergency Power Off: EPO function
  • Compliance Marking: RCM marking stated in product brochure
  • Dimensions (H x L x W): 700mm x 635mm x 550mm
  • Weight: 270 kg
Key Features
  • Provides up to 36 hours of backup for suitable CCTV system loads
  • Online double-conversion design provides continuous power conditioning
  • Pure sinewave output suitable for NVRs, cameras and network equipment
  • Constant regulated 230 VAC output within ±2%
  • Tower-mount configuration for security and communications installations
  • Intelligent three-stage battery charging
  • Plug-and-play installation design
  • Separate critical and non-critical output sockets
  • Generator compatible
  • USB and RS-232 communications for monitoring and controlled shutdown
  • Full-time RJ45 network surge protection
  • Emergency power off function
Professional Installation Requirements
  • Due to the unit's 270 kg weight and mains electrical connection, installation should be completed by suitably qualified electrical or security-system personnel. Position on a structurally suitable floor, provide adequate ventilation and clearance, and install and operate in accordance with the manufacturer's instructions and applicable AS/NZS 3000 requirements. Confirm lifting, battery handling and commissioning procedures before installation.
Applications
  • CCTV systems requiring extended outage protection
  • NVR and multi-camera security installations
  • Commercial and industrial video surveillance systems
  • Access-control and security monitoring equipment
  • Remote security sites requiring extended runtime
  • Telecommunications and network equipment supporting CCTV systems
Standards & Compliance
  • RCM marking stated in the CamSecure product brochure
  • EN 50091-2 EMC compliance stated in the CamSecure product brochure
  • AS 62040.1 is the relevant Australian UPS safety standard; a product-specific AS 62040.1 certificate was not located during research
  • AS/NZS 3000 applies to electrical installation work and site connection requirements
Environmental Benefits
  • Sealed lead-acid batteries can be recovered through established battery-recycling programmes
  • ECO mode can reduce operating energy consumption compared with normal online operation
  • Extended backup capability helps prevent loss of CCTV recording equipment and reduces premature replacement of connected systems
  • Maintenance-free battery construction reduces routine servicing requirements
Warranty Information

PSS Distributors publishes a standard 2-year return-to-base warranty for PSS products, subject to its warranty terms, proof of purchase, correct installation and operating conditions. Confirm product-specific coverage with the authorised distributor before purchase.

Available Now

Available through CamSecure/PSS Distributors and authorised Australian security and electrical distributors; confirm current stock and lead time before ordering.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
