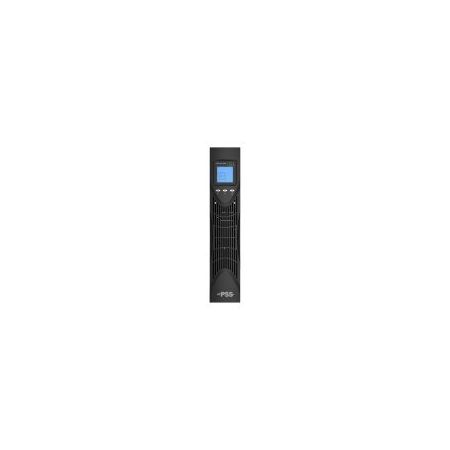

800VA Online UPS 3Hr CCTV Backup Rack or Tower Mount Camsecure
Camsecure 800VA online double conversion UPS features pure sinewave output, 3hr backup for an NVR and 16 cameras, and rack or tower mount. Ideal for CCTV systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CamSecure 800VA UPS, CAM3RT UPS, CamSecure Online Double-Conversion UPS, CCTV Rackmount UPS
Technical Specifications
- Capacity: 800 VA
- Topology: Online double conversion
- Output Waveform: Pure sinewave
- Input Voltage: 230 V ±20%
- Output Voltage: 230 V AC ±2%
- Output Frequency: 50 Hz ±0.1 Hz in battery mode
- Input Frequency: 45–65 Hz
- Phase: Single phase
- Power Factor: ≥0.98
- Input Connection: IEC C14 10 A
- Output Sockets: 2 x Australian three-pin sockets, one critical and one non-critical
- Battery Type: Sealed lead-acid, maintenance-free
- Battery Voltage: 36 V
- Recharge Time: Approximately 5 hours to 90%
- Charging System: Intelligent three-stage charging
- Runtime: Up to 184 minutes for an NVR and 16 standard cameras; estimated runtime
- Communications: USB and RS-232
- Monitoring: Interactive LCD display and smart management software
- Protection: Surge protection, resettable circuit breaker, short-circuit protection and EPO
- Noise Level: Less than 50 dB at 1 m
- Operating Temperature: 0–40 °C
- Mounting: 4RU rack or tower mount
- Generator Compatibility: Yes
- EMC: EN 50091-2 and RCM marking
- Dimensions (H x L x W): 173mm x 430mm x 440mm
- Weight: 35.1 kg
Key Features
- Provides online double-conversion protection for CCTV and security equipment
- Pure sinewave output suitable for NVRs, network equipment and camera systems
- Estimated runtime of up to 3 hours for typical CCTV loads
- Supports rackmount or tower installation
- Regulated 230 V AC output within ±2%
- Interactive LCD shows input, output, load, battery and temperature information
- Emergency power-off function for controlled shutdown
- USB and RS-232 communications for monitoring and management
- Compatible with generator-backed installations
- Additional battery banks can be used for extended runtime applications
Professional Installation Requirements
- Connection to mains power and commissioning should be performed by a suitably qualified electrician or security systems technician in accordance with the manufacturer’s instructions and applicable Australian electrical requirements. Ensure adequate ventilation and suitable rack support for the 35.1 kg unit.
Applications
- CCTV camera and NVR backup
- Security and surveillance systems
- Access control and alarm system power protection
- Small communications and networking racks
- Critical electronic equipment requiring regulated sinewave power
Standards & Compliance
- AS 62040.1:2019 is the applicable Australian UPS safety standard for this product category; confirm product-specific certification and installation requirements before commissioning
Environmental Benefits
- Maintenance-free sealed lead-acid batteries can be recovered through appropriate battery recycling programs
- Online power conditioning can help protect connected equipment and reduce premature replacement of electronic devices
- Rack or tower installation supports long-term use across different security system layouts
- Replaceable battery architecture can extend the service life of the UPS and reduce whole-unit waste
Warranty Information
2-year return-to-base warranty through PSS Distributors, subject to proof of purchase, correct installation, operating conditions and the supplier’s warranty terms. Transportation costs are generally the purchaser’s responsibility.
Available Now
Available through CamSecure/PSS channels and authorised Australian security and electrical distributors.
