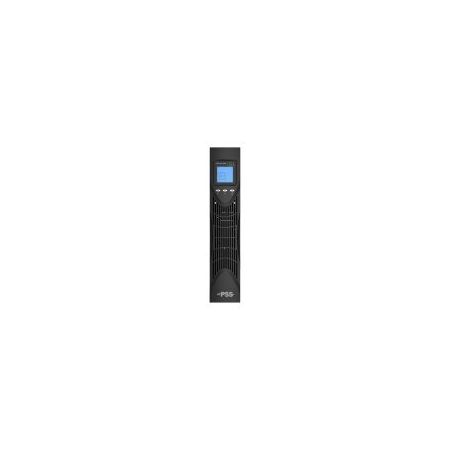

800VA Online UPS 5Hr CCTV Backup Rack or Tower Mount Camsecure

BRAND: CABAC
SKU: CAM5RT
$2,718.40 List price: $3,624.60
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Camsecure 800VA online double conversion UPS features pure sinewave output, 5hr backup for an NVR and 16 cameras, and rack or tower mount. Ideal for CCTV systems.

Alternatively Known As: CamSecure 5-Hour Extended Runtime UPS, CCTV UPS, Online Double-Conversion UPS, Rack/Tower UPS

Technical Specifications
  • Model: CAM5RT
  • Capacity: 800VA
  • Topology: Online double conversion
  • Input Voltage: 230V ±20%
  • Input Frequency: 45–65Hz
  • Output Voltage: 230VAC ±2%
  • Output Frequency in Battery Mode: 50Hz ±0.1Hz
  • Output Waveform: Pure sine wave
  • Output Sockets: 2 x Australian 3-pin sockets, one critical and one non-critical
  • Battery Type: Sealed lead-acid, maintenance-free
  • Battery Voltage: 36V
  • Maximum Charge Current: 12A
  • Recharge Time to 90%: 5 hours
  • Efficiency: ≥89% normal mode; up to 97% ECO mode
  • Communications: USB and RS-232; optional SNMP and relay cards
  • Protection: RJ45 surge protection, resettable circuit breaker and emergency power off
  • Runtime: Approximately 351 minutes for an NVR and 16 standard cameras; runtime varies with load
  • Compliance Marking: RCM; datasheet also references EN50091-2
  • Dimensions (H x L x W): 259.5mm x 430mm x 440mm
  • Weight: 55.1 kg
Key Features
  • Online double-conversion power protection for CCTV and security equipment
  • Pure sine-wave output suitable for NVRs, cameras and communications equipment
  • Designed for approximately five hours of backup for an NVR and 16 standard cameras
  • Rack or tower mounting in a 6RU configuration
  • Interactive LCD displays input, output, battery, load and temperature information
  • Intelligent three-stage battery charging
  • Generator compatible
  • Emergency power off function
  • RJ45 network surge protection
  • Compatible with additional battery banks for extended runtime
Professional Installation Requirements
  • The unit is supplied as a pre-programmed plug-and-play UPS and does not require an electrician for standard plug-in use. Rack installation, hard-wired connections or integration with fixed electrical infrastructure should be completed by a suitably qualified person in accordance with applicable electrical requirements.
Applications
  • CCTV NVR and camera backup
  • Commercial and residential security systems
  • Security control rooms
  • Network and communications equipment
  • Small servers and other critical electronic equipment requiring extended runtime
Standards & Compliance
  • AS 62040.1: applicable Australian UPS safety standard for uninterruptible power systems
  • AS/NZS 3000:2018: applicable to fixed electrical installation, isolation and wiring work
Environmental Benefits
  • Sealed lead-acid batteries can be collected and recycled through appropriate battery-recycling programs
  • Online power conditioning can help protect connected equipment and reduce premature replacement caused by power disturbances
  • Replaceable battery design can extend the service life of the UPS and reduce electronic waste
Warranty Information

24-month warranty listed by an Australian distributor for the CAM5RT model; confirm warranty conditions with the supplying distributor.

Available Now

Available through Australian security, power-protection and authorised distribution channels; distributor stock status should be confirmed before ordering.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
