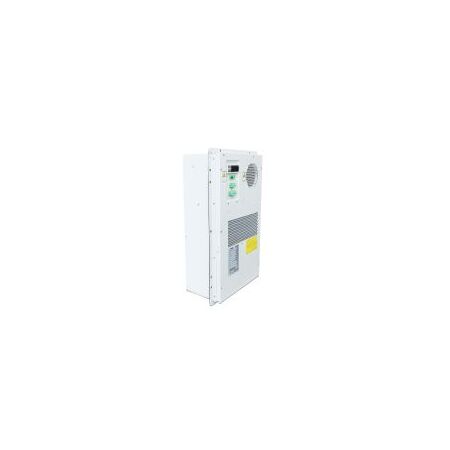

800W IP55 Cabinet Air Conditioner for CC and CA Cabinets Redback
Redback 800W IP55 cabinet air conditioner features digital control and high-efficiency cooling. Ideal for CC and CA outdoor comms cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Redback Rack Cabinet Air Conditioner, Outdoor Communications Cabinet Air Conditioner, CC-AC800-C
Technical Specifications
- Model: CC-AC800-C
- Cooling Capacity: 800 W
- Power Consumption: 300 W
- Power Supply: 230 V AC, 50 Hz
- Running Current: 1.4 A
- Starting Current: 5.6 A
- Operating Temperature: -40°C to +55°C
- Refrigerant: R134a
- Ingress Protection: IP55
- Noise Level: 60 dB
- Ambient Set Temperature: 20°C to 40°C
- Temperature Control: Digital display thermostat
- Installation: Door-mounted, partially recessed
- Power Connection: Three-core conductor, 2–5 m lead
- Finish: Electrostatic coating, RAL7035
- Flange Dimensions: 582 x 352 x 170 mm
- Dimensions (H x L x W): 550mm x 170mm x 320mm
- Weight: 17 kg
Key Features
- 800 W cooling capacity for outdoor communication cabinets
- IP55-rated cabinet-mounted construction
- Digital display thermostat and temperature control
- High-efficiency cooling for enclosed comms equipment
- Suitable for Redback CC and CA outdoor cabinets
- Two units can be operated in redundancy for extreme heat conditions
- Wide operating temperature range from -40°C to +55°C
- R134a refrigeration system
Professional Installation Requirements
- Installation should be completed by suitably qualified electrical and refrigeration technicians. The unit requires a 230 V AC electrical connection, cabinet cut-out and secure door mounting; refrigerant-system servicing must be performed by appropriately qualified personnel in accordance with applicable Australian requirements.
Applications
- Outdoor telecommunications cabinets
- Data and network cabinets
- Redback CC and CA outdoor communication cabinets
- Remote wireless and fibre network enclosures
- Industrial control and communications equipment cabinets
Standards & Compliance
- AS/NZS 60335.2.40:2023 — applicable safety standard for electrical heat pumps, air-conditioners and dehumidifiers; product-specific conformity or certification was not stated in the published datasheet.
Environmental Benefits
- High-efficiency cabinet cooling can help maintain equipment operating conditions and reduce heat-related equipment replacement waste.
- Temperature control may extend the service life of enclosed communications and electronic equipment.
- The cabinet air-conditioner uses a durable coated metal construction that can support material recovery at end of life; confirm material separation with the installer or recycler.
- R134a is a non-flammable refrigerant, but it has a relatively high global-warming potential and should be recovered by qualified technicians rather than released.
Warranty Information
PSS Distributors states that warranty terms apply and that improper installation, use, neglect or alterations may void warranty coverage; a product-specific warranty duration for the CC-AC800-C was not identified in the published information. ([pssdistributors.com.au](https://pssdistributors.com.au/sales-and-advisory-terms-and-conditions/?utm_source=openai))
Available Now
Available through PSS Distributors and authorised Australian Redback Racks distributors; confirm current stock and lead time before ordering. ([pssdistributors.com.au](https://www.pssdistributors.com.au/p?utm_source=openai))
