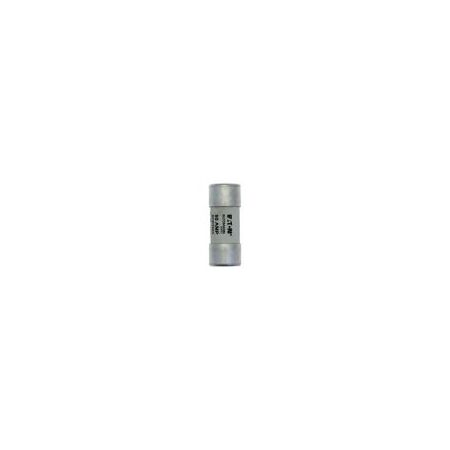

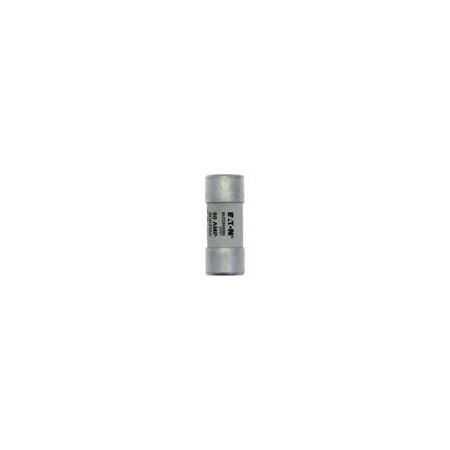

80A 415V AC House Service Fuse | 33 kA Breaking Capacity | gG/gL Class | BS System C Type II by Eaton
80A 415V AC house service fuse designed for low voltage electrical protection—ideal for residential and commercial applications. Built for safety with a high breaking capacity of 33 kA and compliant with BS standards, ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 80A 415V AC House Service Fuse | 33 kA Breaking Capacity | gG/gL Class | BS System C Type II by Eaton
Brand: Eaton
SKU: 80KR85
Alternatively Known As: 80A AC Fuse, 415V House Fuse, Bussmann KR85 Fuse, Low Voltage Fuse, British Standard Fuse
Technical Specifications
- Amperage Rating: 80 A
- Voltage Rating: 415 V AC
- Fuse Type: KR85
- Class: gG/gL
- Breaking Capacity: 33 kA
- Construction: BS system C type II
- Dimensions: 23 x 57 mm
- Certifications: BS IEC 60269
- Compliances: CE Marked, RoHS Compliant
- Dimensions (H x L x W): 22mm x 57mm x 22mm
- Weight: 0.055 kg
Key Features
- 80A amperage rating suitable for house service applications
- 415V AC voltage rating for low voltage systems
- BS system C type II construction for reliable performance
- Class gG/gL fuse type providing general purpose protection
- High breaking capacity of 33 kA for enhanced safety
- Compact size of 23 x 57 mm for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse selection.
Applications
- Low voltage electrical protection in residential and commercial electrical systems
- Protection of electrical circuits in industrial installations
- General use in AC electrical systems requiring 80A fuse protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's warranty policy for details.
Available Now
The Eaton 80A 415V AC House Service Fuse is available for immediate purchase, ideal for residential and commercial electrical protection applications.
