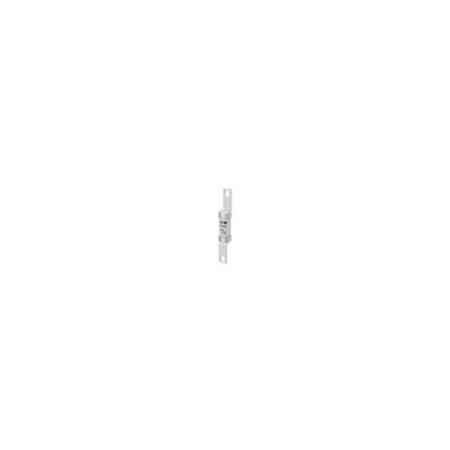

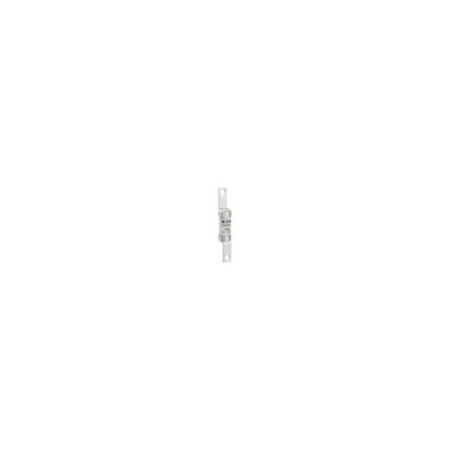

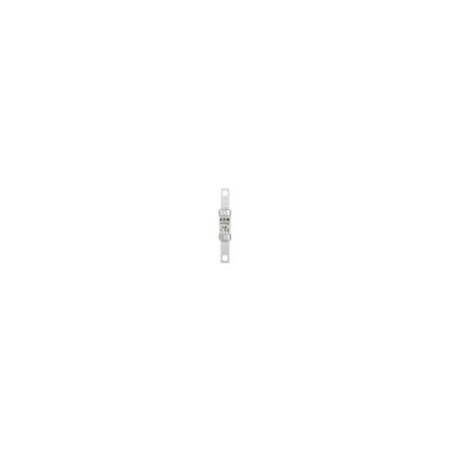

80AMP 500V AC Industrial Fuse | Class gG/gL | 80kA Breaking Capacity | Centre Bolted Tags by Eaton
80AMP 500V AC industrial fuse designed for low voltage protection—ideal for electrical panels and machinery in commercial settings. Built for reliability, featuring a class gG/gL type and 80kA breaking capacity for high fault current interruption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 80AMP 500V AC Industrial Fuse | Class gG/gL | 80kA Breaking Capacity | Centre Bolted Tags by Eaton
Brand: Eaton
SKU: CD80
Alternatively Known As: 80 Amp Industrial Fuse, 500V AC Fuse, BS88 Fuse, Low Voltage Fuse, Eaton CD80 Fuse
Technical Specifications
- Amperage Rating: 80 A
- Voltage Rating: 500 V AC
- Fuse Type: CD
- Class: gG/gL
- Breaking Capacity: 80 kA
- Construction: BS88/B1
- Fitted with: Centre bolted tags
- Certifications: BS88 IEC 60269 EAC
- Compliances: CE Marked, RoHS Compliant
- Dimensions (H x L x W): 21mm x 127mm x 21mm
- Weight: 0.08 kg
Key Features
- 80A amperage rating suitable for industrial applications
- 500V AC voltage rating
- Class gG/gL fuse type for general purpose protection
- Centre bolted tags for secure fitting
- Breaking capacity of 80 kA ensuring high fault current interruption
- Complies with BS88 IEC 60269 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse fitting.
Applications
- Industrial electrical systems requiring low voltage fuse protection
- Electrical panels and switchboards
- Machinery and equipment protection in commercial and industrial settings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 80AMP 500V AC Industrial Low Voltage British Standard Fuse is available now for immediate purchase. Ideal for industrial and commercial electrical protection applications.
