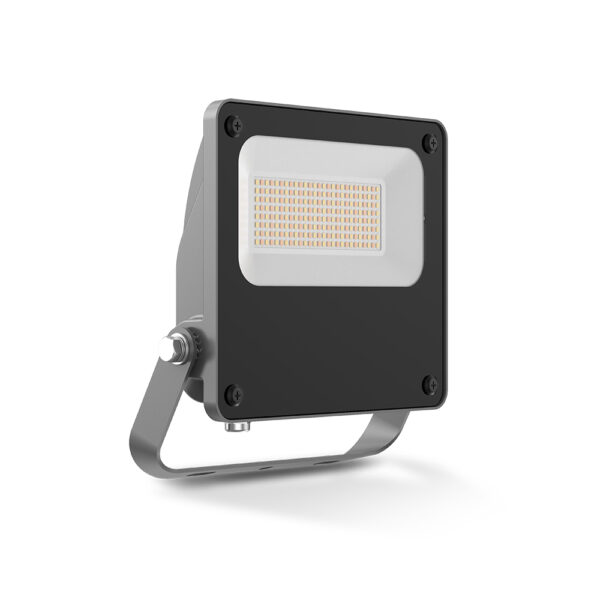

80W Power Switch Flood Light | Adjustable | IP66 & IK08 Rated | Tri-CCT | by Ektor
The 80W Power Switch Flood Light is designed for versatile outdoor lighting, featuring adjustable brightness and a robust IP66 and IK08 rating for durability. With a Tri-CCT configuration offering warm white, cool white, and daylight options, it's perfect for commercial and industrial applications, ensuring optimal visibility and security.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 80 Watt LED Flood Light, Adjustable Outdoor Floodlight, Tri-CCT Flood Light with Photocell
Technical Specifications
- Total system efficiency: 173 lm/W
- IP Rating: IP66
- IK Rating: IK08
- Adjustability: Adjustable
- Body Material: Aluminium
- Diffuser Material: Glass
- Installation Type: Surface mount
- Working Temperature Range: 50 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.95
- Inrush Current: 40 A
- Inrush Duration: 200uS (50%)
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Surge Protection L-N: 4kV
- Surge Protection L/N-PE: 4kV
- Earth Leakage: 0.75 mA
- Power Selection: 40 / 60 / 80 W
- Colour Rendering Index (CRI): >70
- CCT Configuration: TRI-CCT (3000K, 4000K, 5000K)
- Beam Angle: 120°
- Driver Type: Fixed output, integrated
- Driver Mode: Constant Current
- Flex & Plug or Lead Length: 1500 mm
- Wiring Type: Flying leads (3 wire)
- Dimensions (H x L x W): 250mm x 350mm x 300mm
- Weight: 5 kg
Key Features
- High total system efficiency of 173 lm/W
- Adjustable flood light with IP66 and IK08 ratings for durability
- Tri-CCT configuration with warm white (3000K), cool white (4000K), and daylight (5000K) options
- Powdercoated black aluminium body with glass diffuser
- Inline switch and 1500 mm flying leads for easy installation
- Surge protection of 4kV for L-N and L/N-PE
- Power factor of 0.95 and low earth leakage of 0.75 mA
- Constant current fixed output driver integrated
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Outdoor lighting for commercial and industrial areas
- Security lighting
- Landscape and architectural lighting
- Parking lots and building facades
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.5
Environmental Benefits
- High efficiency LED technology reduces energy consumption
- Long lifespan reduces waste and replacement frequency
- Surge protection enhances durability and reduces electronic waste
Warranty Information
5 years return to base warranty for commercial use.
Available Now
The Ektor 80W Power Switch Flood Light with Photocell and Tri-CCT is available now for immediate purchase. Ideal for commercial and industrial outdoor lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
