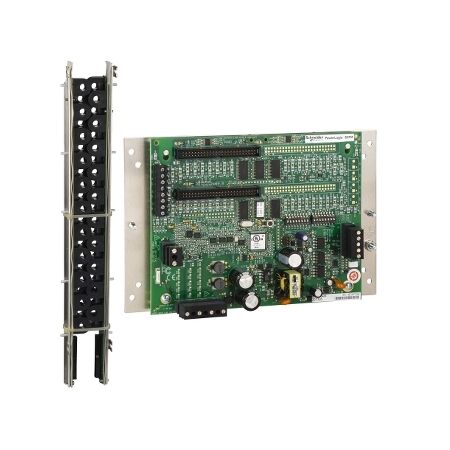

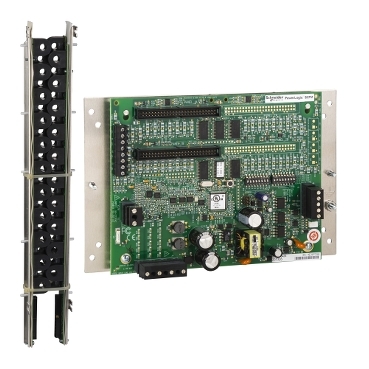

84xAmp Circuits RS485 Power Meter | Monitors 84 Circuits | Solid Core 100A CT | by Clipsal
The 84xAmp Circuits RS485 Power Meter is designed to monitor up to 84 branch circuits simultaneously, making it ideal for commercial and industrial energy management. With RS485 Modbus communication and high accuracy energy measurement, it supports efficient load analysis and cost allocation. Perfect for data centers and facilities management, this compact device ensures reliable performance in energy usage tracking.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 84xAmp Circuits RS485 Power Meter | Monitors 84 Circuits | Solid Core 100A CT | by Clipsal
Brand: Clipsal
SKU: SCHBCPMC084S
Alternatively Known As: Branch Circuit Power Meter, BCPM 84 Circuit Meter, Clipsal Power Monitoring, Schneider BCPM, 84 Channel Energy Meter
Technical Specifications
- Number of Circuits: 84
- Communication: RS485 Modbus
- Current Transformer Type: Solid core, 100A, 3/4" (19mm) spacing
- Voltage Input: 90-480V AC
- Accuracy: ±1% for energy measurements
- Operating Temperature: -10°C to +60°C
- Mounting: Panel mount
- Power Supply: 90-277V AC
- Frequency: 50/60Hz
- Dimensions (H x L x W): 80mm x 300mm x 400mm
- Weight: 6.5 kg
Key Features
- Monitors up to 84 branch circuits simultaneously
- RS485 Modbus communication for integration with BMS and EMS
- Solid core 100A current transformers with 19mm spacing
- High accuracy energy measurement for cost allocation and load analysis
- Compact design for easy installation in panelboards
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with panelboard wiring and Modbus communication setup.
Applications
- Commercial and industrial electrical panels
- Data centers for branch circuit monitoring
- Facilities management for energy usage tracking
- Sub-metering in multi-tenant buildings
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables detailed energy usage analysis for improved efficiency
- Supports energy conservation and cost reduction initiatives
- Facilitates compliance with green building standards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 84xAmp Circuits RS485 3/4" CT BCPM Power Monitoring Basic (SCHBCPMC084S) is available for immediate purchase. Ideal for commercial and industrial energy monitoring applications.
