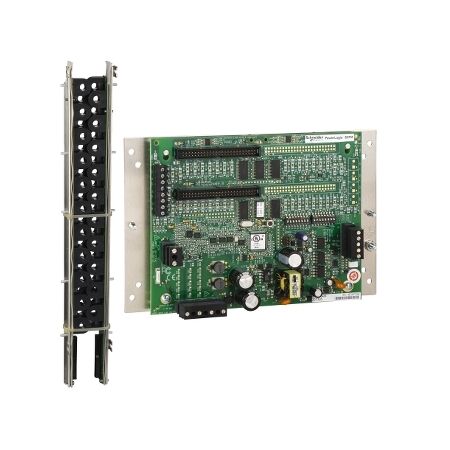

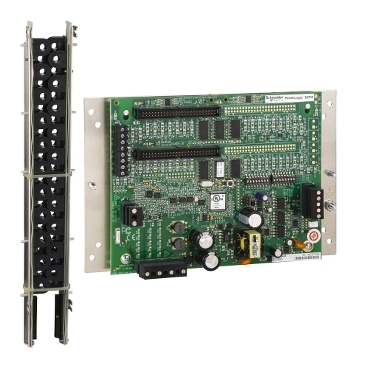

84xAmp Engy/CirctsRS485 Power Meter | Monitors 84 Circuits | RS485 Modbus Communication | by Clipsal
The 84xAmp Engy/CirctsRS485 Power Meter is designed to monitor up to 84 branch circuits simultaneously, making it ideal for commercial and industrial energy management. With solid core current transformers for accurate measurement and RS485 Modbus communication, this power meter ensures efficient energy usage tracking and compliance with green building standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 84xAmp Engy/CirctsRS485 Power Meter | Monitors 84 Circuits | RS485 Modbus Communication | by Clipsal
Brand: Clipsal
SKU: SCHBCPMA084S
Alternatively Known As: Branch Circuit Power Meter, BCPM 84 Circuit Power Monitor, Clipsal Energy Meter, Schneider BCPM, Multi-circuit Power Meter
Technical Specifications
- Monitors: 84 branch circuits
- Current Transformer Type: Solid core
- Maximum Current per Circuit: 100A
- CT Spacing: 19 mm
- Communication: RS485 Modbus
- Power Supply: 90-277 VAC, 50/60 Hz
- Accuracy: ±1% for energy and power
- Operating Temperature: -10°C to +60°C
- Mounting: Panel mount
- Dimensions (H x L x W): 100mm x 300mm x 400mm
- Weight: 3.5 kg
Key Features
- Monitors up to 84 branch circuits simultaneously
- Solid core current transformers (CTs) for accurate measurement
- Supports up to 100A per circuit
- RS485 Modbus communication for integration with BMS and EMS
- Advanced power quality and energy monitoring
- 19 mm CT spacing for easy installation in standard panels
Professional Installation Requirements
- Installation must be performed by a licensed electrician with experience in panel-mounted energy monitoring systems.
Applications
- Commercial and industrial electrical panels
- Data centers for branch circuit monitoring
- Facilities management for energy usage analysis
- Sub-metering in multi-tenant buildings
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables detailed energy usage tracking for improved efficiency
- Supports energy conservation and cost reduction initiatives
- Facilitates compliance with green building standards
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal BCPM Advanced Power Monitoring System (SCHBCPMA084S) is available for immediate purchase. Ideal for commercial and industrial energy management applications.
