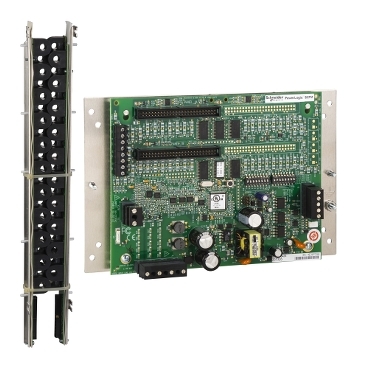

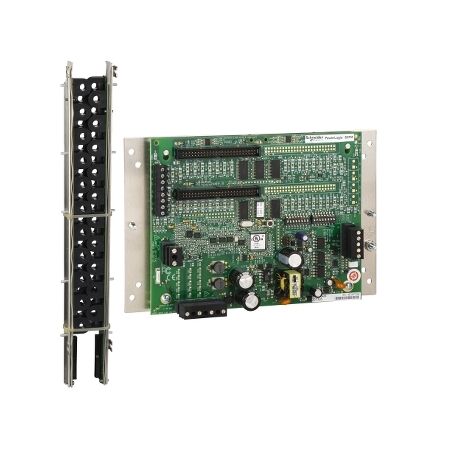

84xAmpCircuits RS485 Power Meter | Monitors 84 Circuits | Solid Core 100A CT | by Clipsal
The 84xAmpCircuits RS485 Power Meter is designed to monitor up to 84 branch circuits simultaneously, making it ideal for commercial and industrial energy management. With solid core 100A current transformers and RS485 Modbus communication, it ensures high accuracy for energy measurement and load analysis, helping to optimize energy consumption and reduce costs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 84xAmpCircuits RS485 Power Meter | Monitors 84 Circuits | Solid Core 100A CT | by Clipsal
Brand: Clipsal
SKU: SCHBCPMB084S
Alternatively Known As: Branch Circuit Power Meter, BCPM 84 Circuit Meter, Clipsal BCPM, Schneider BCPM 84, RS485 Power Meter
Technical Specifications
- Number of Circuits: 84
- Current Transformer Type: Solid core, 100A
- CT Spacing: 19mm (3/4 inch)
- Communication: RS485 Modbus
- Voltage Input: 90-480V AC
- Accuracy: ±1% for energy measurement
- Operating Temperature: -10°C to +60°C
- Mounting: Panel mount
- Dimensions (H x L x W): 100mm x 300mm x 400mm
- Weight: 6.5 kg
Key Features
- Monitors up to 84 branch circuits simultaneously
- RS485 Modbus communication for integration with BMS and EMS
- Solid core 100A current transformers with 19mm spacing
- High accuracy energy measurement for cost allocation and load analysis
- Compact design for easy installation in panelboards
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with power monitoring systems and Modbus communication.
Applications
- Commercial and industrial electrical distribution panels
- Data centers for branch circuit monitoring
- Energy management and sub-metering in large facilities
- Building automation systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to identify inefficiencies and reduce energy consumption
- Supports sustainability initiatives by facilitating load management and energy optimization
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 84xAmpCircuits RS485 3/4" CT S BCPM Power Monitoring Intermediate is available for immediate purchase. Ideal for commercial and industrial energy management applications.
