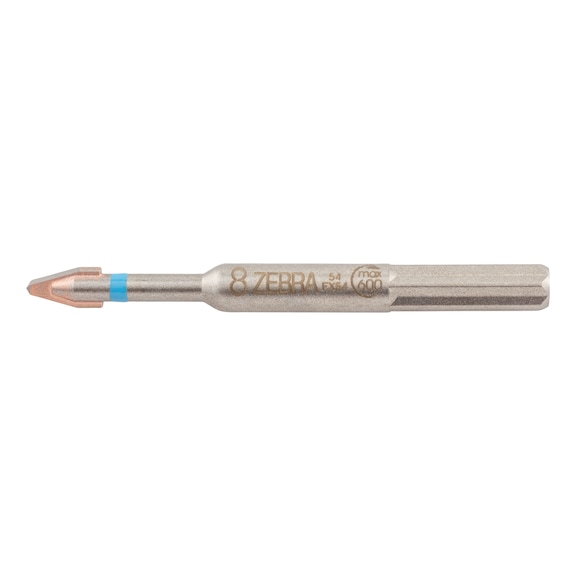

8mm Carbide Tile Drill Bit | Chip-Free Drilling | Polygon Shank | by Wurth
The 8mm Carbide Tile Drill Bit is expertly crafted for precise, chip-free drilling in hard materials like stoneware and porcelain. With a unique polygon shank to prevent slippage and a drill depth indicator for accuracy, this bit is perfect for professional tiling and construction projects. Designed for rotary drilling only, it ensures optimal performance without the need for cooling, making it a reliable choice for experienced users.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 8mm Carbide Tile Drill Bit | Chip-Free Drilling | Polygon Shank | by Wurth
Brand: Wurth
SKU: 641418011
Alternatively Known As: Tile drill bit, carbide drill bit for tiles, porcelain drill bit, stoneware drill bit, rotary drill bit
Technical Specifications
- Diameter: 8 mm
- Length: 106 mm
- Shank diameter: 10 mm
- Tool holding device: Polygon
- Versatility rating: 1 of 4 points
- Service life rating: 3 of 4 points
- Drilling speed rating: 2 of 4 points
- Bore hole quality rating: 4 of 4 points
- Max speed: 600 rpm for 8 mm diameter
- Optimum contact pressure: 35-45 kg
- Not suitable for impact drilling, rotary drilling only
- Dimensions (H x L x W): 106mm x 106mm x 10mm
- Weight: 0.2 kg
Key Features
- Specially designed carbide plate geometry for precise, chip-free drilling
- New polygon shank prevents slippage and ensures optimal torque transmission
- Drill depth indicator for accurate drilling depth control
- No cooling required during use
- Not suitable for impact drilling; rotary drilling only
Professional Installation Requirements
- Recommended for use by professionals or experienced users familiar with rotary drilling techniques to avoid breakage and ensure optimal performance.
Applications
- Drilling in extremely hard stoneware tiles up to Mohs hardness 9
- Drilling in glass and porcelain materials
- Suitable for rotary drilling in construction and tiling projects
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable carbide construction extends tool life, reducing waste
- No cooling required reduces water usage during drilling
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth 8mm Carbide Tile Drill Bit is available for immediate purchase, ideal for professional tiling and construction applications.
