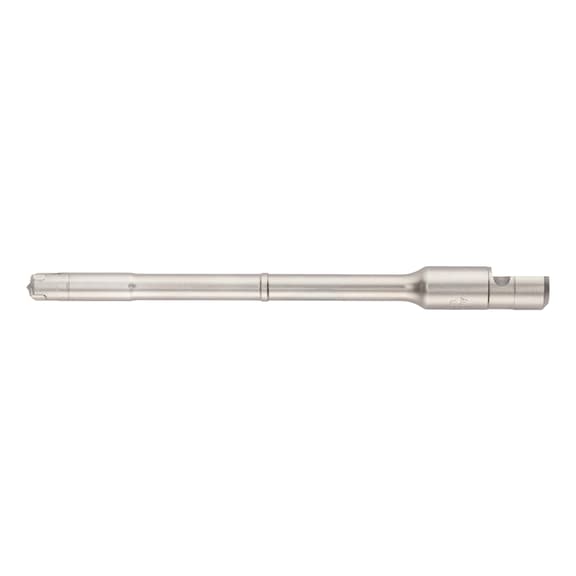

8mm Modular Hammer Drill Bit | Dust-Free Drilling | 4 Cutting Edges | Bayonet Connection | by Wurth
The 8mm Modular Hammer Drill Bit is designed for dust-free drilling in concrete and reinforced materials, featuring a symmetrical head with four cutting edges for efficient performance. Ideal for construction sites, this bit ensures precise drilling control with its bayonet-click connection and drill depth indicator, making it a must-have for professionals seeking clean and effective results.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 8mm Modular Hammer Drill Bit | Dust-Free Drilling | 4 Cutting Edges | Bayonet Connection | by Wurth
Brand: Wurth
SKU: 648048015
Alternatively Known As: Hammer drill bit 8mm, Modular drill bit with dust extraction, Bayonet drill bit, Dust-free hammer drill bit
Technical Specifications
- Diameter: 8 mm
- Length: 150 mm
- Working length: 100 mm
- Number of cutting edges: 4
- Tool holding device: Screw-in thread
- Drilling speed rating: 3/4
- Smoothness of running rating: 4/4
- Accuracy rating: 4/4
- Reinforcement strength rating: 3/4
- Service life rating: 4/4
- Dimensions (H x L x W): 8mm x 150mm x 8mm
- Weight: 0.2 kg
Key Features
- Dust-free drilling with immediate dust extraction from the drill hole
- Symmetrical head with four cutting edges for efficient drilling
- Bayonet-click connection for easy and secure attachment
- Drill depth indicator for precise drilling control
- Very good compatibility with reinforcements when used with appropriate suction units
- Extends service life by reducing dust and debris during drilling
Professional Installation Requirements
- Use only with compatible suction units and dust class M vacuums. Drilling through iron reinforcements requires structural engineer approval. Professional handling recommended for safety and optimal performance.
Applications
- Drilling in concrete and reinforced materials with dust extraction
- Use with dust class M vacuums and suction units for dust-free operation
- Suitable for construction sites requiring precise and clean drilling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Dust extraction reduces airborne particles, improving air quality on construction sites
- Minimizes health risks associated with dust inhalation
- Reduces need for additional cleaning, lowering water and chemical use
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Modular Hammer Drill Bit 8mm is available for immediate purchase, ideal for construction and machining applications requiring dust-free and precise drilling.
