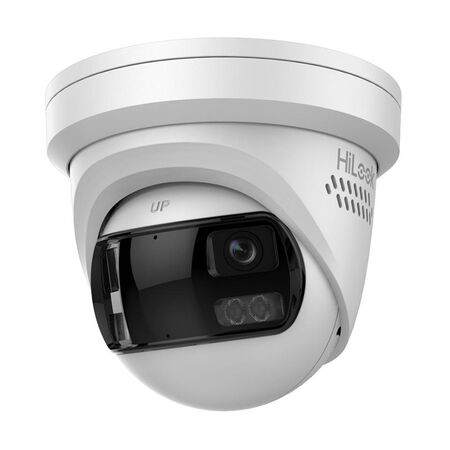

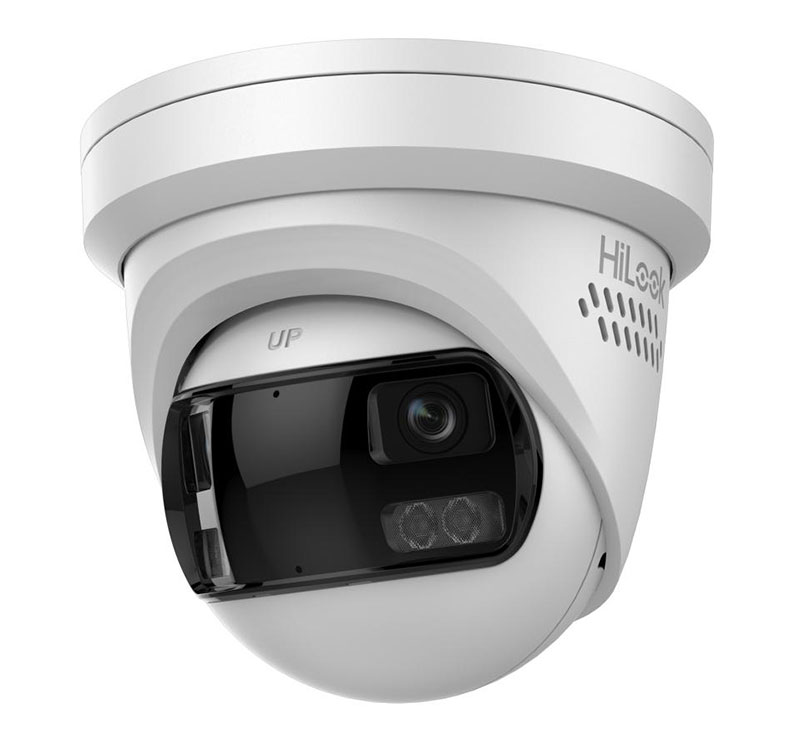

8MP 180 Degree Turret Camera HiLook Hikvision
Hikvision HiLook turret camera features 8MP resolution and a 180 degree view. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: HiLook 8MP 180° Turret Camera, HiLook Dual-Lens Panoramic Camera, HiLook All-in-One 180° Network Camera, Hikvision HiLook IPC-T289PH-MU/SL
Technical Specifications
- Model: IPC-T289PH-MU/SL
- Resolution: 8 MP, up to 4256 × 1888
- Image Sensor: 1/2.4-inch progressive scan CMOS
- Lens: Fixed 2 mm dual-lens design
- Field of View: 180° horizontal, 77° vertical
- Minimum Illumination: 0.005 Lux at F1.6; 0 Lux with supplemental light
- Supplement Light: Smart Hybrid Light with IR and white light, up to 30 m
- Video Compression: H.265+, H.265, H.264+ and H.264
- Frame Rate: Up to 20 fps at 4256 × 1888
- Wide Dynamic Range: 120 dB
- Audio: Built-in microphone and speaker with two-way audio
- Storage: MicroSD, microSDHC or microSDXC up to 512 GB
- Detection: Human and vehicle detection, motion detection, line crossing and intrusion
- Network Interface: 1 × RJ45 10/100 Mbps Ethernet
- Power: 12 VDC or IEEE 802.3af PoE, Class 3
- Maximum Power Consumption: 11.5 W
- Ingress Protection: IP67
- Material: Metal housing excluding trim ring
- Environmental Certifications: RoHS, WEEE and REACH
- Dimensions (H x L x W): 115.4mm x 138.3mm x 138.3mm
- Weight: 0.79 kg
Key Features
- 180° panoramic coverage from a single fixed turret camera
- 8 MP resolution with dual-lens image stitching
- Smart Hybrid Light combining infrared and white-light illumination
- Built-in microphone, speaker and active audio deterrence
- Red and blue flashing light for visual deterrence
- Human and vehicle detection to help reduce false alerts
- H.265+ compression for reduced bandwidth and storage requirements
- MicroSD recording support up to 512 GB
- PoE or 12 VDC power options
- IP67-rated housing for indoor and outdoor installations
Professional Installation Requirements
- Installation should be completed by a competent security or communications installer. Any 240 V AC power supply or mains connection must be installed by a licensed electrician. Configure network, recording and privacy settings in accordance with site requirements.
Applications
- Commercial premises and shopfronts
- Warehouses, yards and car parks
- Building entrances and perimeter monitoring
- Forecourts, gates and access roads
- Wide-area indoor surveillance
- Residential security installations requiring panoramic coverage
Standards & Compliance
- Applicable CCTV system requirements: AS/NZS 62676.1.1:2020
- CCTV application and installation guidance: AS/NZS 62676.4:2020
- Australian electrical and communications installations should use compliant equipment carrying the applicable RCM requirements
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements
- A single 180° camera can reduce the need for multiple cameras, cabling and associated installation materials
- Metal housing and IP67 protection support extended service life in suitable outdoor environments
- RoHS compliance supports restriction of hazardous substances in the product
Warranty Information
Hikvision standard warranty policy lists HiLook products with a 36-month warranty, subject to the applicable sales region, product serial number and authorised distribution conditions.
Available Now
Available through Hikvision HiLook and authorised Australian security equipment distributors.
