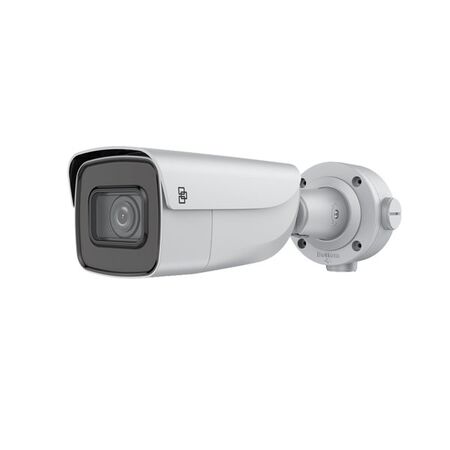

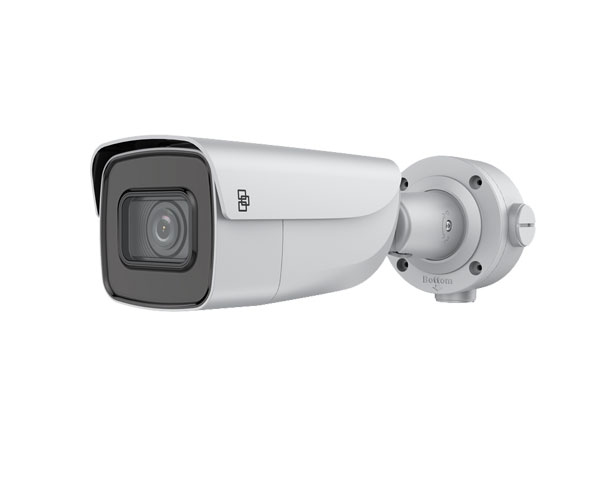

8MP Bullet Camera Motorised Zoom 2.8-12mm IR 60m Grey TruVision
TruVision 8MP bullet camera features motorised zoom 2.8-12mm and 60m IR night vision in grey. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TruVision M-Series 8MP IP Bullet Camera, TruVision 4K Bullet CCTV Camera, TVGP-M01-0802-BUL-G
Technical Specifications
- Model: TVGP-M01-0802-BUL-G
- Technology: IP network camera
- Maximum Resolution: 3840 × 2160 at 20 fps
- Image Sensor: 1/2.8-inch progressive-scan CMOS
- Lens: 2.8–12mm motorised varifocal
- Field of View: 108° to 30° horizontal; 56° to 17° vertical
- Minimum Illumination: 0.005 lux at F1.6 with AGC on; 0 lux with IR
- Infrared Range: Up to 60m
- Wide Dynamic Range: True WDR, 120dB
- Video Compression: H.264, H.265 and H.265+
- Video Streams: Triple stream
- Network Interface: RJ-45 10/100 Mbps Ethernet
- Power Supply: 12VDC or PoE 802.3at, 42.5–57VDC
- Maximum Power Consumption: 15W
- Local Storage: MicroSD/SDHC/SDXC up to 256GB
- Audio: One line-level input and one line-level output
- Alarm I/O: One input and one output
- Environmental Rating: IP67
- Impact Rating: IK10
- Operating Temperature: -30°C to +60°C
- Colour: Grey
- Regulatory Markings: CE, FCC, REACH, RoHS, UL and WEEE
- Dimensions (H x L x W): 93mm x 308.5mm x 97.9mm
- Weight: 1.39 kg
Key Features
- 8MP/4K resolution for detailed surveillance footage
- Motorised 2.8–12mm varifocal lens with autofocus
- Up to 60m infrared illumination for night surveillance
- True WDR and 3D digital noise reduction for challenging lighting
- Person and vehicle classification to reduce irrelevant motion events
- Intrusion, line-crossing, face and advanced motion detection
- H.265+ compression helps reduce bandwidth and storage requirements
- ONVIF Profile G, S and T interoperability
- Edge recording to MicroSD card up to 256GB
- Outdoor-rated IP67 housing with IK10 vandal resistance
- PoE or 12VDC operation
Professional Installation Requirements
- Installation should be performed by a qualified security or communications technician. Any associated mains-powered network, PoE or power-supply work must be completed in accordance with applicable Australian electrical requirements, including AS/NZS 3000 where relevant.
Applications
- Outdoor commercial CCTV installations
- Residential security surveillance
- Warehouses, workshops and industrial sites
- Retail and commercial premises
- Perimeter, entry and vehicle-access monitoring
- Security systems requiring person and vehicle classification
Standards & Compliance
- AS/NZS 62676.1.1:2020 – relevant to video surveillance systems installed for security applications
- AS/NZS 3000 – applicable to associated fixed electrical installation and mains wiring
- AS 60529 – IP enclosure protection classification relevant to the stated IP67 rating
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- RoHS compliance restricts specified hazardous substances in the electronic equipment
- IP67 and IK10 protection can extend service life in outdoor and vandal-prone installations, reducing replacement waste
- Local edge recording can reduce dependence on continuous network transmission and central storage
Warranty Information
TruVision cameras supplied through Ness Corporation are covered by a 3-year warranty from date of manufacture, subject to the supplier’s warranty terms and exclusions.
Available Now
Available through TruVision and authorised Australian security and electrical distributors.
