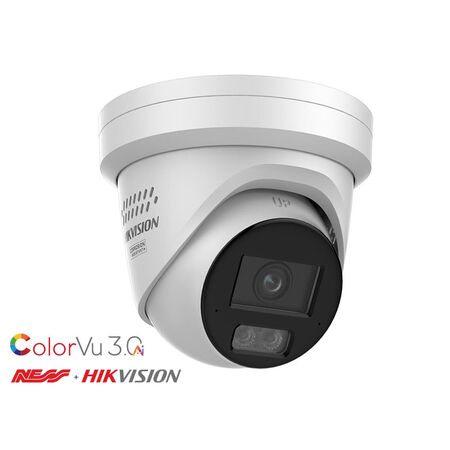

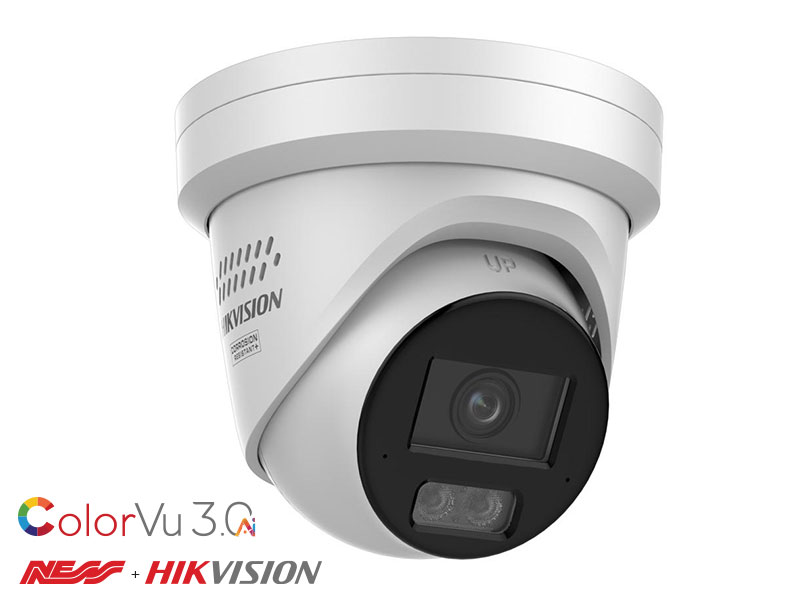

8MP ColorVu 3.0 Turret Camera 2.8mm Hikvision
Hikvision turret camera features 8MP resolution, ColorVu 3.0 imaging and a 2.8mm lens. Ideal for CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP ColorVu 3.0 IP Turret Camera, Hikvision 4K Smart Hybrid Light Turret Camera, Hikvision DS-2CD2387G3-LIS2UY/SL
Technical Specifications
- Model: DS-2CD2387G3-LIS2UY/SL
- Resolution: 3840 x 2160, 8MP / 4K
- Image Sensor: 1/1.8 inch progressive scan CMOS
- Lens: Fixed 2.8mm focal length
- Aperture: F1.0
- Field of View: 108.8° horizontal, 56.4° vertical, 134.3° diagonal
- Minimum Illumination: 0.0005 lux colour at F1.0; 0 lux with supplementary light
- Frame Rate: Up to 25 fps at 50 Hz or 30 fps at 60 Hz in 4K
- WDR: 130dB scene-adaptive WDR
- Supplementary Light: 850nm IR and white light up to 30m
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Storage: MicroSD/SDHC/SDXC up to 512GB with ANR
- Network: RJ45 10/100Mbps; ONVIF Profiles S, G and T
- Power: IEEE 802.3at PoE Class 4, maximum 17W, or 12VDC, maximum 15.5W
- Protection Rating: IP67
- Anti-Corrosion Protection: NEMA 4X
- Audio: Built-in dual microphone, speaker and two-way audio
- Deterrence: Active white strobe light and audio alarm
- Operating Temperature: -30°C to +60°C
- Body Material: Metal cover and main body
- Compliance Marking: RCM; EMC compliance includes AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 115.4mm x 138.3mm x 138.3mm
- Weight: 0.82 kg
Key Features
- ColorVu 3.0 technology for 24/7 colour imaging
- 8MP 4K resolution for detailed surveillance footage
- Wide 2.8mm lens with 108.8° horizontal viewing angle
- F1.0 super-aperture lens and 1/1.8-inch image sensor
- Smart Hybrid Light combines IR and white illumination
- Human and vehicle classification for perimeter events
- Line crossing, intrusion and region entrance or exit detection
- Active strobe and audio deterrence for linked events
- Built-in dual microphones and speaker for two-way communication
- IP67 weather and dust protection for outdoor installations
- NEMA 4X anti-corrosion protection
- PoE+ connectivity for combined data and power over Ethernet
- MicroSD recording up to 512GB with ANR support
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security technician. Use an IEEE 802.3at PoE+ switch or NVR, suitable external mounting hardware and compliant low-voltage cabling. Configure the camera and recording system in accordance with the site security design and applicable electrical and communications requirements.
Applications
- Residential CCTV surveillance
- Commercial premises and retail security
- Driveway, entrance and perimeter monitoring
- Warehouses, workshops and industrial sites
- Outdoor car park and loading-area surveillance
- Access points requiring two-way audio and active deterrence
Standards & Compliance
- RCM EMC compliance to AS/NZS CISPR 32:2015
- AS/NZS 62676.1.1:2020 is applicable to video surveillance systems for security applications
- AS/NZS 62676.4:2020 provides application guidance for the selection, planning, installation, commissioning, maintenance and testing of video surveillance systems
Environmental Benefits
- PoE connectivity can reduce the need for separate power cabling at the camera location
- Low-voltage 12VDC or PoE operation supports efficient power distribution compared with mains-connected camera hardware
- Durable IP67 metal construction and NEMA 4X anti-corrosion protection can extend service life and reduce replacement waste
- MicroSD and network recording options can reduce reliance on dedicated local recording hardware for suitable installations
Warranty Information
3-year Australian warranty is listed for this model by an Australian distributor; warranty terms and eligibility should be confirmed with the authorised seller at purchase.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
