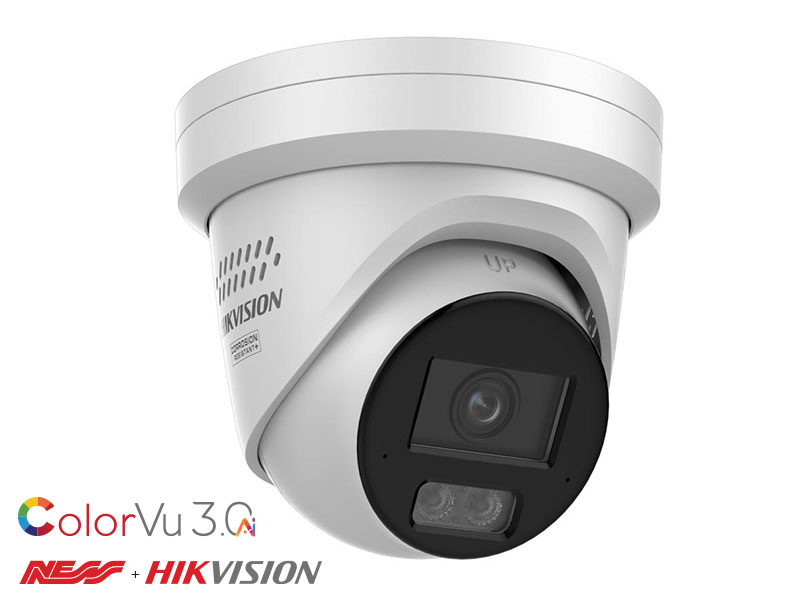

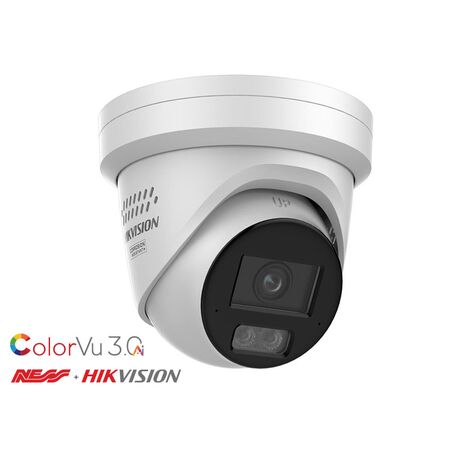

8MP ColorVu 3.0 Turret Camera 4mm Hikvision
Hikvision turret camera features 8MP resolution, ColorVu 3.0 imaging and a 4mm lens. Ideal for CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD2387G3-LIS2UY/SL 4mm, 8MP ColorVu 3.0 Turret Camera, 8MP 4K IP Turret Camera
Technical Specifications
- Model: DS-2CD2387G3-LIS2UY/SL (4mm)
- Resolution: 3840 × 2160, 8MP 4K
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: Fixed 4mm focal length, F1.0 aperture
- Field of View: Horizontal 93.3°, vertical 47.2°, diagonal 114.2°
- Minimum Illumination: 0.0005 lux at F1.0, AGC on; 0 lux with supplemental light
- Supplemental Lighting: Smart white light and infrared illumination up to 30m
- Video Compression: H.265, H.264, H.265+, H.264+ and MJPEG
- Frame Rate: Up to 25fps at 3840 × 2160 in 50Hz mode
- Power: 12V DC, maximum 15.5W, or PoE IEEE 802.3at Class 4, maximum 17W
- Audio: Mono audio with environmental noise filtering
- Detection: Human and vehicle classification, line crossing, intrusion, region entrance and region exiting
- Ingress Protection: IP67
- Anti-Corrosion Protection: NEMA 4X
- Material: Metal cover and metal main body
- Compliance Markings: RCM: AS/NZS CISPR 32:2015; CE-RoHS; IP67 to IEC 60529
- Dimensions (H x L x W): 115.4mm x 138.3mm x 138.3mm
- Weight: 0.82 kg
Key Features
- 24/7 colour imaging using ColorVu 3.0 technology
- 8MP 4K image resolution for detailed surveillance footage
- 4mm fixed lens suited to medium-distance monitoring and entrance coverage
- Smart hybrid illumination automatically switches between white light and infrared lighting
- Human and vehicle target classification reduces nuisance alarms
- Built-in white warning light and audible warning functions
- Face capture and perimeter protection functions
- Supports H.265+ compression to reduce storage and bandwidth requirements
- IP67-rated housing for outdoor installations
- Metal construction with NEMA 4X anti-corrosion protection
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical tradesperson. Configure and install the IP camera, PoE or 12V DC power supply, network cabling and recording equipment in accordance with the manufacturer’s instructions and applicable Australian requirements, including AS/NZS 62676 guidance for video surveillance systems.
Applications
- Residential CCTV surveillance
- Commercial and retail security systems
- Industrial and warehouse monitoring
- Building entrances, driveways and car parks
- Perimeter protection and human or vehicle detection
- Outdoor surveillance installations exposed to rain and dust
Standards & Compliance
- RCM marking to AS/NZS CISPR 32:2015, as stated in the manufacturer datasheet
- Applicable CCTV system requirements: AS/NZS 62676.1.1:2020
- Applicable CCTV system application and installation guidance: AS/NZS 62676.4:2020
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- Smart supplemental lighting can limit unnecessary white-light operation and associated energy use
- Metal housing materials can be recovered through established metal recycling streams at end of service life
- IP67 and NEMA 4X protection support longer service life in demanding outdoor environments, reducing replacement waste
- RoHS compliance restricts specified hazardous substances in the product
Warranty Information
Hikvision Australia warranty support is available through authorised distribution partners and is subject to the applicable product warranty terms and proof of purchase. The published five-year Hikvision Oceania warranty applies only to listed premium project-oriented product series; this ColorVu Pro-series turret camera should not be assumed to carry that extended warranty unless confirmed by the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security and electrical distributors; confirm regional stock and Australian firmware availability with the distributor.
