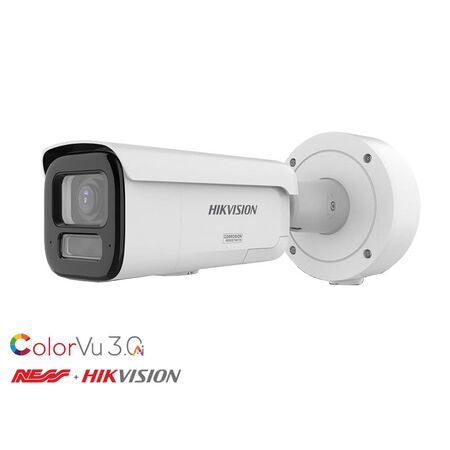

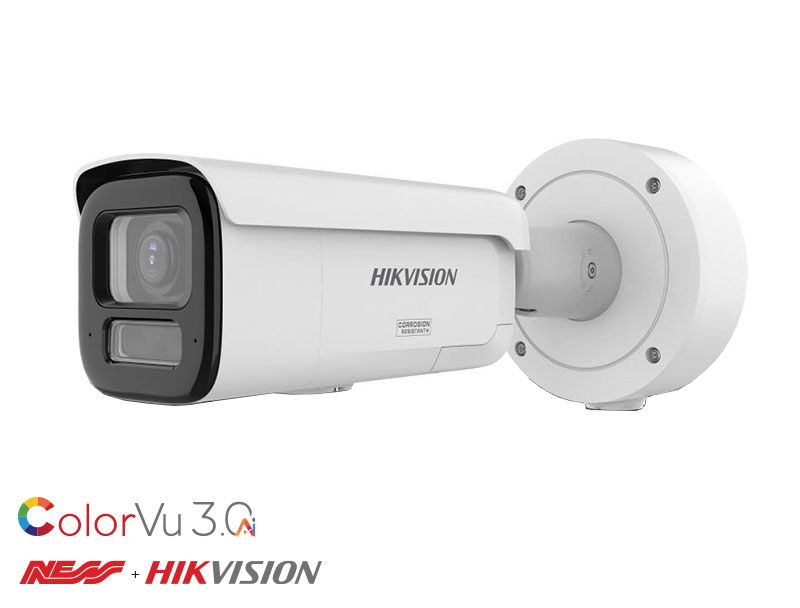

8MP ColorVu 3 Bullet Camera 2.7-13.5mm Hikvision
Hikvision bullet camera features 8MP resolution, ColorVu 3 imaging and a 2.7-13.5mm lens. Ideal for CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP ColorVu 3.0 Bullet Camera, 8MP Smart Hybrid Light Bullet Camera, Hikvision DS-2CD3687G3-LIZSU/SL
Technical Specifications
- Model: DS-2CD3687G3-LIZSUY/SL
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Maximum Resolution: 3840 × 2160 pixels, 8MP
- Lens: Motorised varifocal 2.7–13.5mm lens
- Aperture: F1.2, auto-iris
- Horizontal Field of View: 112.3° to 41.2°
- Minimum Illumination: 0.001 Lux at F1.2, AGC on; 0 Lux with supplemental light
- Wide Dynamic Range: 130dB
- Supplemental Lighting: Smart Hybrid Light with IR and white light
- Supplemental Light Range: Up to 60m
- Video Compression: H.265, H.264, H.265+, H.264+ and MJPEG
- Audio: Built-in arrayed dual microphones with audio input and output support
- Network Interface: RJ45 10/100Mbps Ethernet
- Power: 12V DC or PoE IEEE 802.3at, Class 4
- Storage: MicroSD card support up to 512GB
- Detection: Human and vehicle classification, intrusion, line crossing and region detection
- Compatibility: ONVIF Profiles S, T and G; ISAPI and SDK
- Operating Temperature: -30°C to 60°C
- Ingress Protection: IP67
- Impact Protection: IK10
- Anti-Corrosion Protection: NEMA 4X for the -Y model
- Housing Material: Metal front cover, body and bracket
- Dimensions (H x L x W): 140mm x 335mm x 140mm
- Weight: 1.555 kg
Key Features
- 8MP 4K image resolution for detailed surveillance footage
- ColorVu 3.0 technology for 24/7 colour imaging
- Motorised varifocal lens for remote focal-length adjustment
- Smart Hybrid Light combining infrared and white-light illumination
- 130dB wide dynamic range for high-contrast scenes
- AcuSense deep-learning classification of people and vehicles
- Active strobe light and audible warning for intrusion deterrence
- Built-in dual microphones for real-time audio monitoring
- IP67 water and dust resistance for outdoor installations
- IK10 vandal resistance
- NEMA 4X anti-corrosion protection on the -Y variant
- Supports local MicroSD recording and ONVIF integration
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or data-cabling professional. Ensure the mounting surface, network infrastructure, PoE supply and weather sealing are suitable for the installation environment. Any mains-connected power supply must be installed by a licensed electrician where required.
Applications
- Commercial and industrial CCTV surveillance
- Residential perimeter and entry-point monitoring
- Retail, warehouse and logistics security
- Car parks, loading areas and building exteriors
- Coastal or moderately corrosive outdoor environments using the -Y variant
- People and vehicle detection with active intrusion deterrence
Standards & Compliance
- AS/NZS 62676.1.1:2020 - Video surveillance systems for security applications, general system requirements
- AS/NZS 62676.4:2020 - Video surveillance systems application guidelines
- IP67 protection is specified to IEC 60529; confirm Australian regulatory marking and installation requirements for the supplied unit
Environmental Benefits
- RoHS-compliant design limits the use of restricted hazardous substances
- Metal housing and bracket materials can support end-of-life metal recycling
- PoE operation can reduce cabling and power-conversion requirements in networked installations
- Durable IP67, IK10 and anti-corrosion construction can extend service life and reduce replacement waste
- Efficient H.265/H.265+ compression can reduce network bandwidth and storage requirements
Warranty Information
Hikvision Oceania lists Ultra Series network cameras as eligible for a five-year manufacturer warranty for qualifying products manufactured from 1 March 2022. Warranty support is subject to the applicable Hikvision terms, proof of purchase and purchase through an authorised Australian distribution channel.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors, subject to distributor stock.
