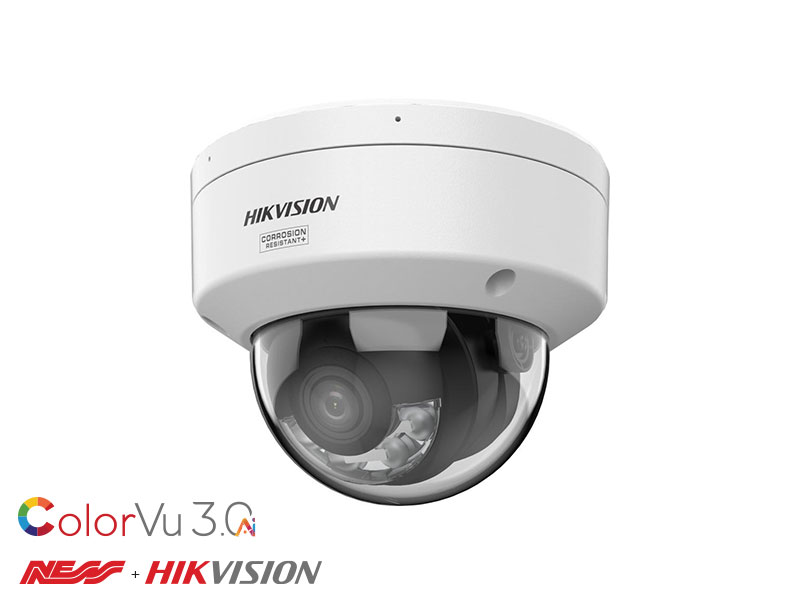

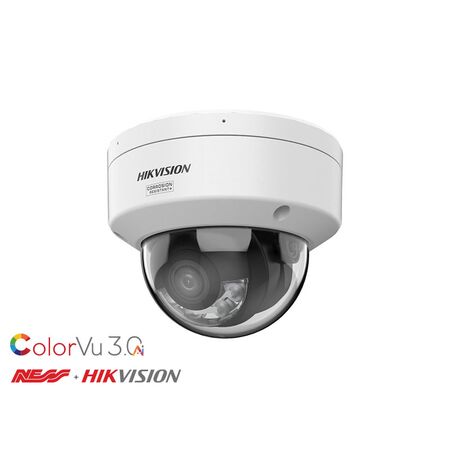

8MP ColorVu 3 Compact Dome Camera 2.8mm Hikvision
Hikvision compact dome camera features 8MP resolution, ColorVu 3 imaging and a 2.8mm lens. Ideal for CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP ColorVu 3.0 Dome Camera, Hikvision 4K Smart Hybrid Light Dome Camera, Hikvision DS-2CD2187G3-LIS2UY 2.8mm
Technical Specifications
- Model: DS-2CD2187G3-LIS2UY
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Maximum Resolution: 3840 x 2160 pixels, 8MP
- Lens: Fixed 2.8mm focal length
- Lens Aperture: F1.0
- Field of View: Horizontal 108.8°, vertical 56.4°, diagonal 134.3°
- Minimum Illumination: 0.0005 lux in colour mode; 0 lux with supplemental light
- Frame Rate: Up to 25 fps at 4K in 50 Hz mode or 30 fps in 60 Hz mode
- Wide Dynamic Range: 130dB scene-adaptive WDR
- Supplemental Light: Smart Hybrid Light with white light and infrared illumination
- Supplemental Light Range: Up to 30m
- Video Compression: H.265, H.264, H.265+, H.264+ and MJPEG
- Storage: MicroSD, microSDHC or microSDXC up to 512GB
- Network Interface: 10/100 Mbps self-adaptive RJ45 Ethernet
- Power Supply: 12V DC, maximum 9W, or IEEE 802.3af PoE, maximum 10.5W
- Audio: Built-in arrayed dual microphone; audio input and output supported
- Protection Rating: IP67 weather and dust resistance; IK10 vandal resistance
- Anti-Corrosion Protection: NEMA 4X
- Analytics: Human and vehicle classification, line crossing, intrusion, region entrance and region exiting
- Angle Adjustment: Pan 0° to 355°, tilt 0° to 75°, rotate 0° to 355°
- Material: Aluminium alloy base and cover
- Compliance Marking: RCM listed with AS/NZS CISPR 32:2015 EMC reference
- Dimensions (H x L x W): 97.6mm x 121.5mm x 121.5mm
- Weight: 0.6 kg
Key Features
- 8MP 4K resolution for detailed surveillance imagery
- ColorVu 3.0 technology for full-colour imaging in low-light conditions
- F1.0 2.8mm fixed lens with 108.8° horizontal field of view
- Smart Hybrid Light combining infrared and white-light illumination
- Person and vehicle classification based on deep-learning analytics
- Built-in dual microphones for audio security applications
- MicroSD recording support up to 512GB
- PoE or 12V DC power options
- IP67 weather resistance and IK10 impact protection
- NEMA 4X anti-corrosion design for moderately corrosive environments
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV installer. Any 230V AC power supply, fixed wiring or associated electrical work must be completed by a licensed electrician in accordance with applicable Australian electrical installation requirements.
Applications
- Residential CCTV surveillance
- Commercial and retail security systems
- Warehouses, workshops and industrial premises
- Building entrances, car parks and perimeter monitoring
- Outdoor surveillance in exposed or moderately corrosive environments
- IP camera systems using PoE network infrastructure
Standards & Compliance
- AS/NZS CISPR 32:2015 for electromagnetic compatibility emissions, as referenced by the manufacturer's RCM approval
Environmental Benefits
- Low-power operation through IEEE 802.3af PoE, with maximum camera consumption of approximately 10.5W over PoE
- RoHS and WEEE environmental compliance references in the manufacturer's documentation
- Aluminium alloy construction supports durability and material recyclability
- IP67, IK10 and NEMA 4X protection can extend service life and reduce replacement waste
- Efficient H.265 video compression can reduce network bandwidth and storage requirements
Warranty Information
Warranty is subject to Hikvision Australia’s current RMA policy and authorised-distributor terms. Hikvision’s published five-year warranty programme applies only to specified premium project-oriented product series and should not be assumed to apply to this model without confirmation from the authorised Australian supplier.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
